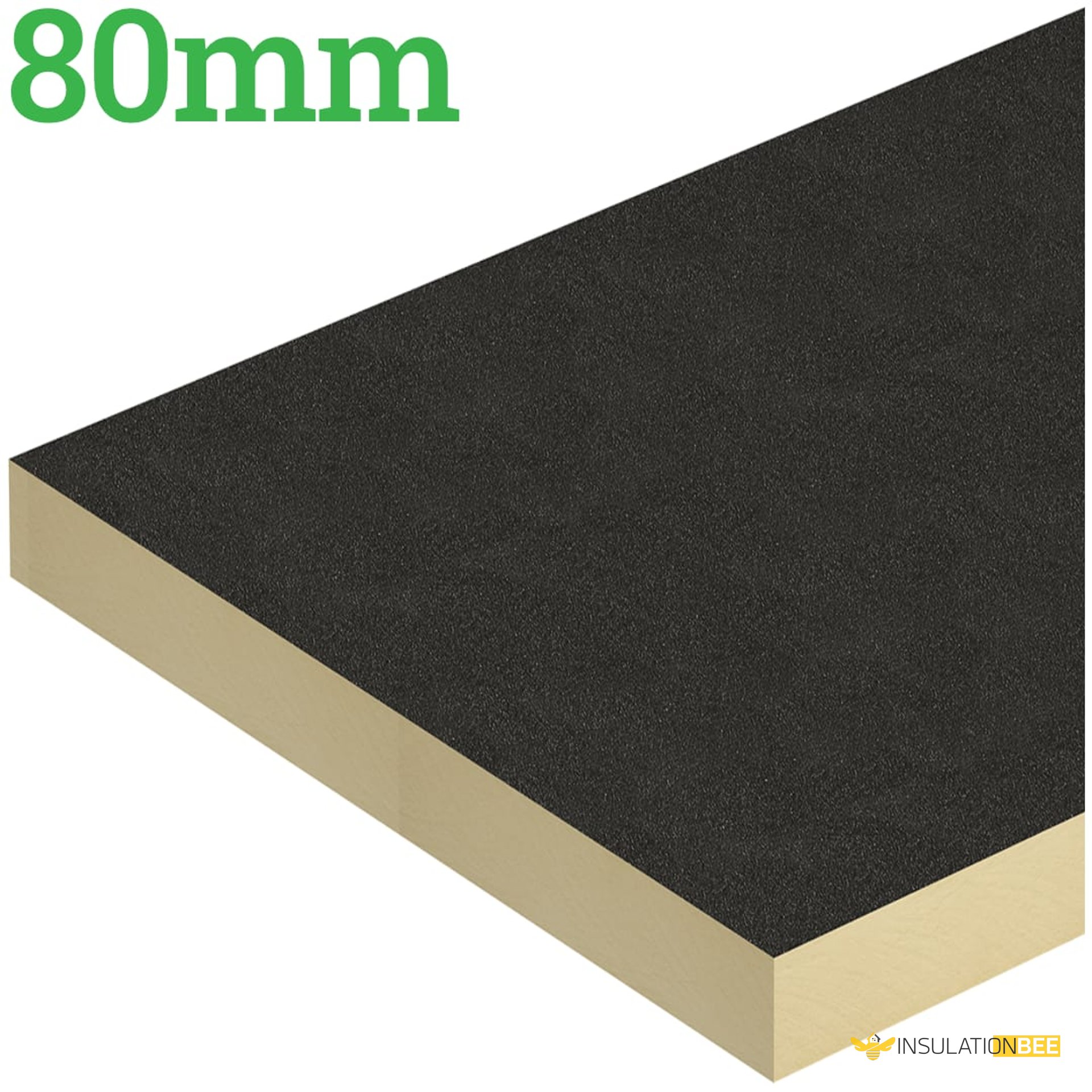

80mm Kingspan Thermaroof TR26 Flat Roof Board

Introducing 80mm Kingspan Thermaroof TR26, a high-performance PIR insulation board engineered for flat roof applications. This product delivers exceptional compatibility with mechanically-fixed, single-ply waterproofing systems and green roof installations. Suitable for both new construction and renovation work, the 80mm TR26 offers straightforward installation and handling characteristics, making it ideal for accelerated building schedules and reliable flat roof insulation performance.

Product Specification

Brand: Kingspan®

Model: 80mm TR26 Thermaroof

Thickness: 80mm

Length: 2400mm

Width: 1200mm

Weight: 29.55kg

Board Coverage: 2.88m2

Pack Coverage: 11.52m2

Pack Quantity: 4 sheets

R-Value: 3.60 m2K/W

Thermal Conductivity: 0.022 W/mK

Dimensions: 2,400mm x 1,200mm x 80mm

Colour: Light Yellow | Silver

Compressive Strength: 150kPa

Vapour resistivity: 100

Density: 32kg/m3

Material: PIR Insulation Polyisocyanurate (rigid polyurethane foam PU)

Profile: Square edge

Finish: Low emissivity composite foil facings

Applications: Used for flat roofs waterproofed with mechanically fixed single-ply waterproofing.

BBA Certified: Yes

Features: Fully compatible with flat roof waterproofing and green roof systems

Key Features:

1. Superior thermal performance: The 80mm Thermaroof TR26 delivers outstanding thermal efficiency for flat roof applications, maximising energy conservation benefits.
2. Mechanically-fixed single-ply waterproofing compatibility: Engineered to work seamlessly with the majority of mechanically-fixed, single-ply waterproofing systems, providing flexibility across diverse roofing specifications.
3. FM Approval to FM 4470: This insulation meets FM Approval to FM 4470 standards, confirming compliance with recognised industry benchmarks.
4. Simple installation and handling: The product's straightforward design facilitates rapid installation and handling, streamlining on-site work and reducing labour time.
5. Versatile for new build and refurbishment applications: The 80mm Kingspan Thermaroof TR26 performs effectively in both new construction and renovation scenarios, delivering dependable thermal solutions.
6. Tapered system availability: A tapered insulation system option is available, enabling proper roof slope creation for effective drainage and water management.

Roof Waterproofing

80mm Kingspan Thermaroof TR26 integrates effectively with most mechanically fixed single–ply waterproofing membranes.

Water Vapour Control

Installation Guidelines: New Build Roofs: When installing Kingspan Thermaroof® TR26 in new build roofs, a separate vapour control layer is typically recommended unless the product is used with a sealed metal deck. A condensation risk analysis should be completed for each specific project to verify correct installation practices.

Refurbishment Projects with Existing Insulated Flat Roofs or Insulated Steel Faced Composite Panels: For renovation work involving the addition of roof insulation to existing insulated flat roofs or insulated steel faced composite panel roofs, conducting a U-value calculation and condensation risk analysis is essential. These evaluations determine the correct insulation thickness for achieving target thermal performance whilst preventing interstitial condensation.

Installation over Existing Bituminous Waterproofing Roof Membrane: When installing Kingspan Thermaroof® TR26 over an existing bituminous waterproofing membrane during refurbishment, the membrane can function as a vapour control layer provided it remains in sound, watertight condition. Should the membrane show signs of deterioration, a separate vapour control layer must be installed.

Minimum Requirements for Separate Vapour Control Layer: Where a separate vapour control layer is required, use a 1000 gauge (250 micron) polythene sheet. All joints must be overlapped and sealed with double-sided self-adhesive tape for optimal performance.
