100mm Kingspan Thermaroof TR26 Flat Roof Board

Discover 100mm Kingspan Thermaroof TR26, a high-performance PIR insulation board engineered for flat roof applications. This product delivers exceptional thermal performance and integrates seamlessly with mechanically-fixed, single-ply waterproofing systems and green roof installations. Ideal for both new builds and renovation work, the TR26 combines straightforward installation with reliable performance, making it particularly suited to accelerated construction schedules requiring swift completion of roof insulation projects.

Product Specification

Brand: Kingspan®

Model: 100mm TR26 Thermaroof

Thickness: 100mm

Length: 2400mm

Width: 1200mm

Weight: 3.5kg/m2

Board Coverage: 2.88m2

Pack Coverage: 8.64m2

Pack Quantity: 3 sheets

R-Value: 4.50 m2K/W

Thermal Conductivity: 0.022 W/mK

Dimensions: 2,400mm x 1,200mm x 100mm

Colour: Light Yellow | Silver

Compressive Strength: 150kPa

Vapour resistivity: 100

Density: 32kg/m3

Material: PIR Insulation Polyisocyanurate (rigid polyurethane foam PU)

Profile: Square edge

Finish: Low emissivity composite foil facings

Applications: Used for flat roofs waterproofed with mechanically fixed single-ply waterproofing.

BBA Certified: Yes

Features: Fully compatible with flat roof waterproofing and green roof systems

Key Features:

1. Superior thermal performance: The 100mm Thermaroof TR26 delivers outstanding thermal efficiency for flat roof applications, maximising energy conservation benefits.
2. Compatibility with mechanically-fixed, single-ply waterproofing: Engineered to work with the majority of mechanically-fixed, single-ply waterproofing systems, providing flexibility across diverse roofing specifications.
3. FM Approval to FM 4470: This insulation carries FM Approval to FM 4470, confirming compliance with recognised industry quality standards.
4. Simple handling and installation: The TR26 features straightforward installation characteristics, streamlining the construction process and reducing labour time.
5. Suitable for new construction and refurbishment: Whether applied to new-build projects or renovation schemes, 100mm Kingspan Thermaroof TR26 provides a dependable solution for varied roofing scenarios.
6. Tapered insulation system availability: The product is available as a tapered insulation system, enabling controlled roof slope creation for optimal drainage and water management.

Roof Waterproofing

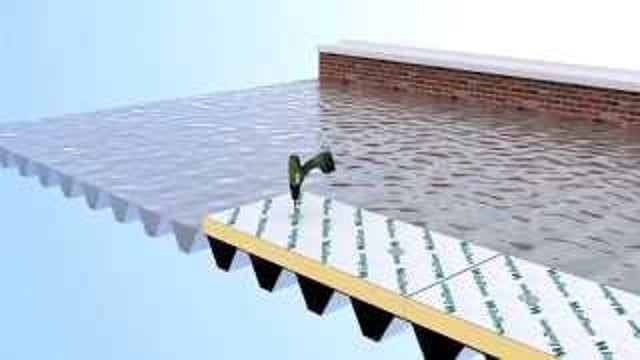

100mm Kingspan Thermaroof TR26 performs effectively with most mechanically fixed single-ply waterproofing membranes.

Water Vapour Control

Installation Guidelines: New Build Roofs: When applying Kingspan Thermaroof® TR26 to new build roofs, a separate vapour control layer is typically recommended unless the product is used with a sealed metal deck. A condensation risk assessment should be completed for each installation to verify appropriate specification.

Refurbishment Projects with Existing Insulated Flat Roofs or Insulated Steel Faced Composite Panels: For renovation work involving additional roof insulation over existing insulated flat roofs or insulated steel faced composite panels, U-value calculations and condensation risk analysis are essential. These evaluations determine appropriate insulation thickness for meeting thermal requirements whilst preventing interstitial condensation.

Installation over Existing Bituminous Waterproofing Roof Membrane: When Kingspan Thermaroof® TR26 is installed over existing bituminous waterproofing membranes in refurbishment applications, the membrane can function as a vapour control layer if it remains in sound, watertight condition. Where the membrane is compromised, an independent vapour control layer must be installed.

Minimum Requirements for Separate Vapour Control Layer: Where a separate vapour control layer is required, specify a 1000 gauge (250 micron) polythene sheet. All joints must be overlapped and sealed using double-sided self-adhesive tape for effective performance.
