30mm Unilin Thin-R FR/MG Flat Roof Insulation Board

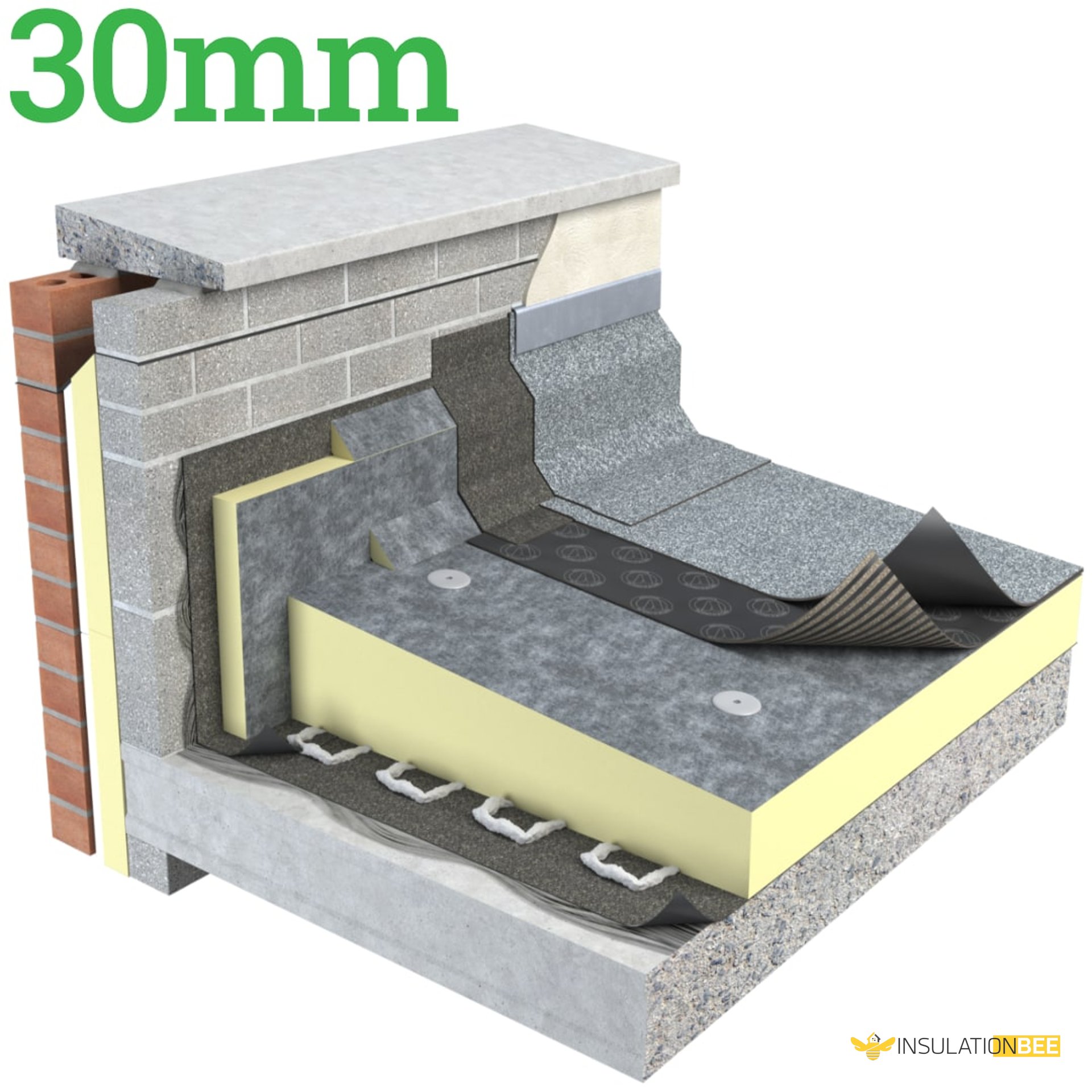

30mm Unilin FR/MG Flat Roof Insulation Board is a premium Polyisocyanurate product featuring mineral-coated glass facers, engineered for performance beneath single-ply waterproofing systems and partially bonded built-up felt roof installations.

These 30mm roof insulation boards must be secured using approved mechanical fixings or suitable bonding methods. Assessment of vapour control layer requirements should follow current National Building Regulations.

30mm Unilin Thin-R FR/MG was previously known as 30mm Xtratherm Thin-R FR/MG.

Product Specification

Brand: Xtratherm / Unilin ®

Model: 30mm FR/MG

Thickness: 30mm

Length: 1200mm

Width: 600mm

Dimensions: 1,200mm x 600mm x 30mm

Board Coverage: 0.72m2

Pack Coverage: 10.08m2

Pack Quantity: 14

Density: 30kg/m3

Colour: Cream

Material: Polyisocyanurate (PIR Insulation)

Profile: Square Edge

R-Value: 1.04m2K/W

Thermal Conductivity: 0.024W/mK

Compressive strength: CS (10\Y) 150

Reaction to fire: Euroclass E

Inner facing: Mineral glass facer

Outer facing: Mineral glass facer

Shipping method: Articulated Vehicle ǀ Courier

Applications: Flat Roof Insulation

BBA Certified: Yes (No. 11/4878)

Features: Mineral coated glass facers

Advantages:

1. Exceptional thermal performance for 30mm flat roof applications
2. Suitable for adhesively bonded single-ply roofing membranes when installed on mechanically fixed or bonded substrates
3. Environmental Product Declaration (EPD) certified by IGBC available

Roof Design

Refer to BS 4841: Part 3 and Single Ply Roofing Association guidance for design recommendations.

Falls

Flat roofs require consistent fall gradients to prevent water pooling and ensure effective drainage.

Fire Performance

Fire classification of this 30mm FR-MG product, when assessed to EN 13501-5 and BS 476 Part 3 'External Fire Exposure Roof Test', depends on the waterproofing system selected.

Vapour Control Layer

A continuous, approved vapour control layer must be installed beneath the insulation (except over sealed metal deck systems). For mechanically fixed boards, use a minimum 1000 gauge polythene layer, lapped and sealed with double-sided tape beneath the Roof insulation. At vertical upstands and penetrations, turn up and seal the VCL to fully encapsulate the insulation before completing the roof finish.
