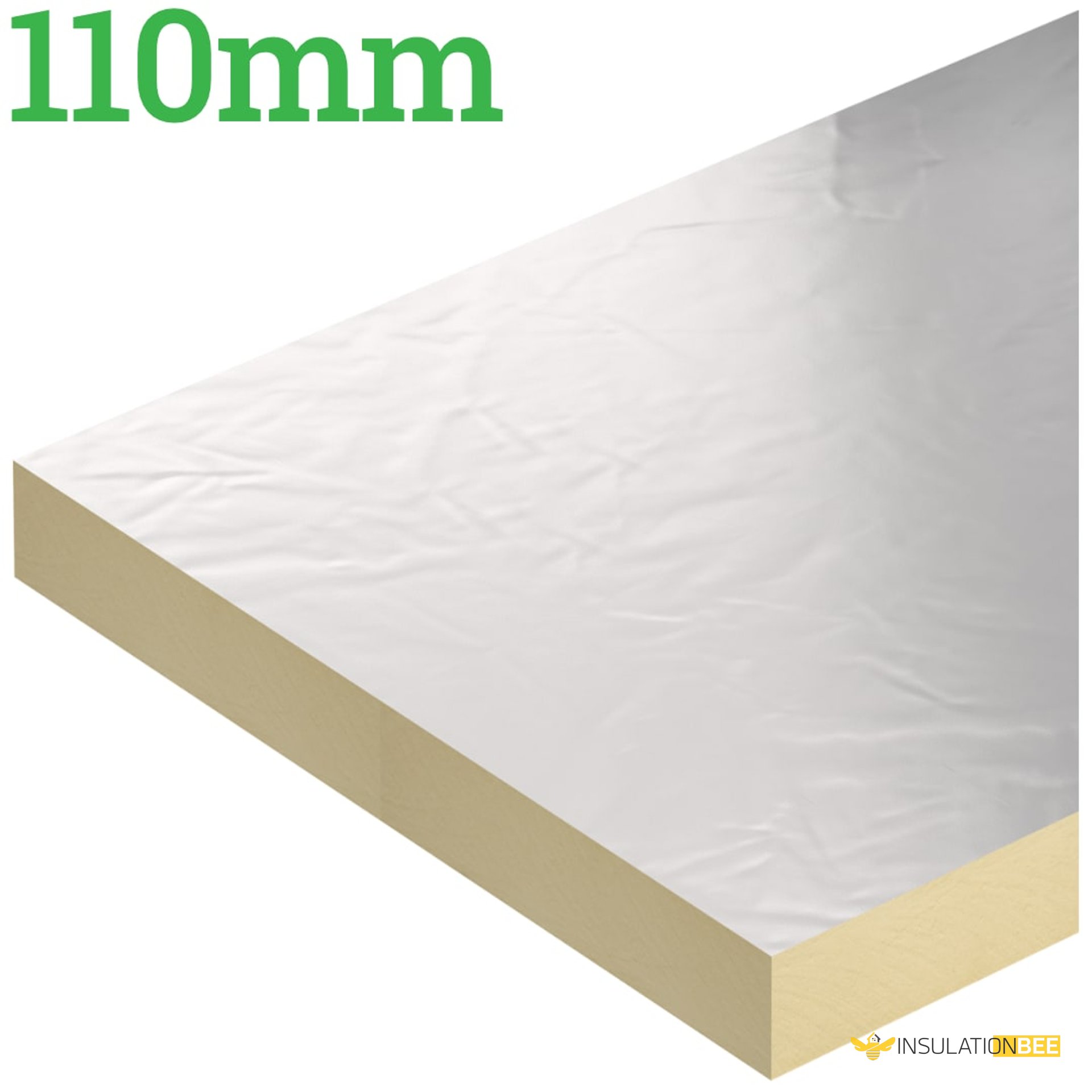

110mm Unilin FR/ALU Flat Roof Insulation Board

110mm Unilin FR/ALU, previously known as 110mm Xtratherm FR/ALU, delivers premium-grade Polyisocyanurate flat roof insulation with dual vapor-tight aluminum foil facings, engineered for compatibility with single-ply membranes. This product forms part of Unilin's comprehensive range of high-performance flat roof boards, delivering complete solutions tailored to flat roof applications.

Product specification

Brand: Unilin Insulation FR/ALU (formerly Xtratherm FR/ALU)

Model: 110mm Unilin FR/ALU

Thickness: 110mm

Available Thicknesses: 25mm, 30mm, 40mm, 50mm, 60mm, 70mm, 75mm, 80mm, 90mm, 100mm, 110mm, 120mm, 125mm, 130mm, 140mm, 150mm

Length: 2400mm

Width: 1200mm

Board Coverage: 2.88m2

Pack Coverage: 8.64m2

Pack Quantity: 3 sheets

Pack Weight: 30 kg

Dimensions: 2,400mm x 1,200mm x 110mm

Thermal Conductivity: 0.022 W/mK

R-Value: 5.0 m2K/W

Colour: Light yellow

Density: 32 Kg/m3

Compressive Strength: > 150kPa

Material: Polyisocyanurate Rigid Foam ( PIR insulation board )

Profile: Square Edge

Fire Reaction: Euroclass B, s2-d0

Finish: Vapour resistant gas-tight foil

Inner facing: Foil Facing

Outer facing: Foil Facing

Applications: Flat Roof Waterproofing Systems

BBA Certified: Yes (No. 11/4817)

Fixing method: Mechanically fixed single ply waterproofing systems

Foil faced: Yes, gas-tight foil facings on both sides

Features: Composite gas-tight foil facings on both sides

Manufacturer: Unilin Insulation®

Main Highlights:

1. Exceptional Thermal Efficiency
2. Foil facers providing effective vapor resistance
3. Suitable for mechanically fixed single-ply systems
4. This product has an Environmental Product Declaration (EPD) certified by IGBC. For additional information, please reach out to our technical support.

Advantages:

1. Exceptional Thermal Efficiency
2. Compatibility with mechanically fixed single-ply systems and loose-laid ballasted systems
3. Effective vapor resistance with foil facers
4. The product comes with an Environmental Product Declaration (EPD) certified by IGBC. For more information, please contact our technical support team.

About

The 110mm Unilin FR/ALU Flat Roof Insulation Board is engineered from rigid polyisocyanurate PIR insulation board with composite gas-tight foil facings on both sides.

Perfect for thermal insulation and slope creation on limited-access concrete, timber, or metal flat roof decks across new construction and renovation projects, the 110mm FR/ALU Board performs dual functions.

When paired with a vapor control layer and mechanically fixed single-ply roof waterproofing membrane, 110mm Unilin FR/ALU Insulation Board achieves optimal performance.

Installation requires laying boards over the vapor control layer in a staggered, break-bonded arrangement for comprehensive coverage.

For reliable installation, 110mm Unilin FR/ALU flat roof insulation boards must be secured using approved mechanical fastening systems.

Roof Design

Refer to BS 4841: Part 3 and Single Ply Roofing Association guidance for design recommendations.

Falls

Flat roof falls must be consistent and sufficiently steep to prevent water pooling.

Fire Performance

Fire rating, determined by EN 13501-5 and BS 476 Part 3 'External Fire Exposure Roof Test' testing, depends on the waterproofing system selected.

Note: This board was formerly known as 110mm Xtratherm Thin-R FR/ALU Flat Roof PIR Insulation Board
