100mm Unilin FR/ALU Flat Roof Insulation Board

100mm Unilin FR/ALU, previously marketed as 100mm Xtratherm FR/ALU, delivers premium-grade Polyisocyanurate flat roof insulation with dual vapor-tight aluminum foil facings for compatibility with single-ply membranes. This product forms part of Unilin's comprehensive range of high-performance flat roof boards, delivering complete solutions tailored for flat roof applications.

Product specification

Brand: Unilin Insulation FR/ALU (formerly Xtratherm FR/ALU)

Model: 100mm Unilin FR/ALU

Thickness: 100mm

Thickness: 25mm, 30mm, 40mm, 50mm, 60mm, 70mm, 75mm, 80mm, 90mm, 100mm, 110mm, 120mm, 125mm, 130mm, 140mm, 150mm

Length: 2400mm

Width: 1200mm

Board Coverage: 2.88m2

Pack Coverage: 11.52m2

Pack Quantity: 4 sheets

Pack Weight: 36 kg

Dimensions: 2,400mm x 1,200mm x 100mm

Thermal Conductivity: 0.022 W/mK

R-Value: 4.55 m2K/W

Colour: Light yellow

Density: 32 Kg/m3

Compressive Strength: > 150kPa

Material: Polyisocyanurate Rigid Foam ( PIR insulation board )

Profile: Square Edge

Fire Reaction: Euroclass B, s2-d0

Finish: Vapour resistant gas-tight foil

Inner facing: Foil Facing

Outer facing: Foil Facing

Applications: Flat Roof Waterproofing Systems

BBA Certified: Yes (No. 11/4817)

Fixing method: Mechanically fixed single ply waterproofing systems

Foil faced: Yes, gas-tight foil facings on both sides

Features: Composite gas-tight foil facings on both sides

Manufacturer: Unilin Insulation®

Main Highlights:

1. Exceptional Thermal Efficiency
2. Foil facers providing effective vapor resistance
3. Suitable for mechanically fixed single-ply systems
4. This product has an Environmental Product Declaration (EPD) certified by IGBC. For additional information, please reach out to our technical support.

Advantages:

1. Exceptional Thermal Efficiency
2. Compatibility with mechanically fixed single-ply systems and loose-laid ballasted systems
3. Effective vapor resistance with foil facers
4. The product comes with an Environmental Product Declaration (EPD) certified by IGBC. For more information, please contact our technical support team.

About

The 100mm Unilin FR/ALU Flat Roof Insulation Board combines rigid polyisocyanurate PIR insulation with gas-tight foil facings on both sides for superior performance.

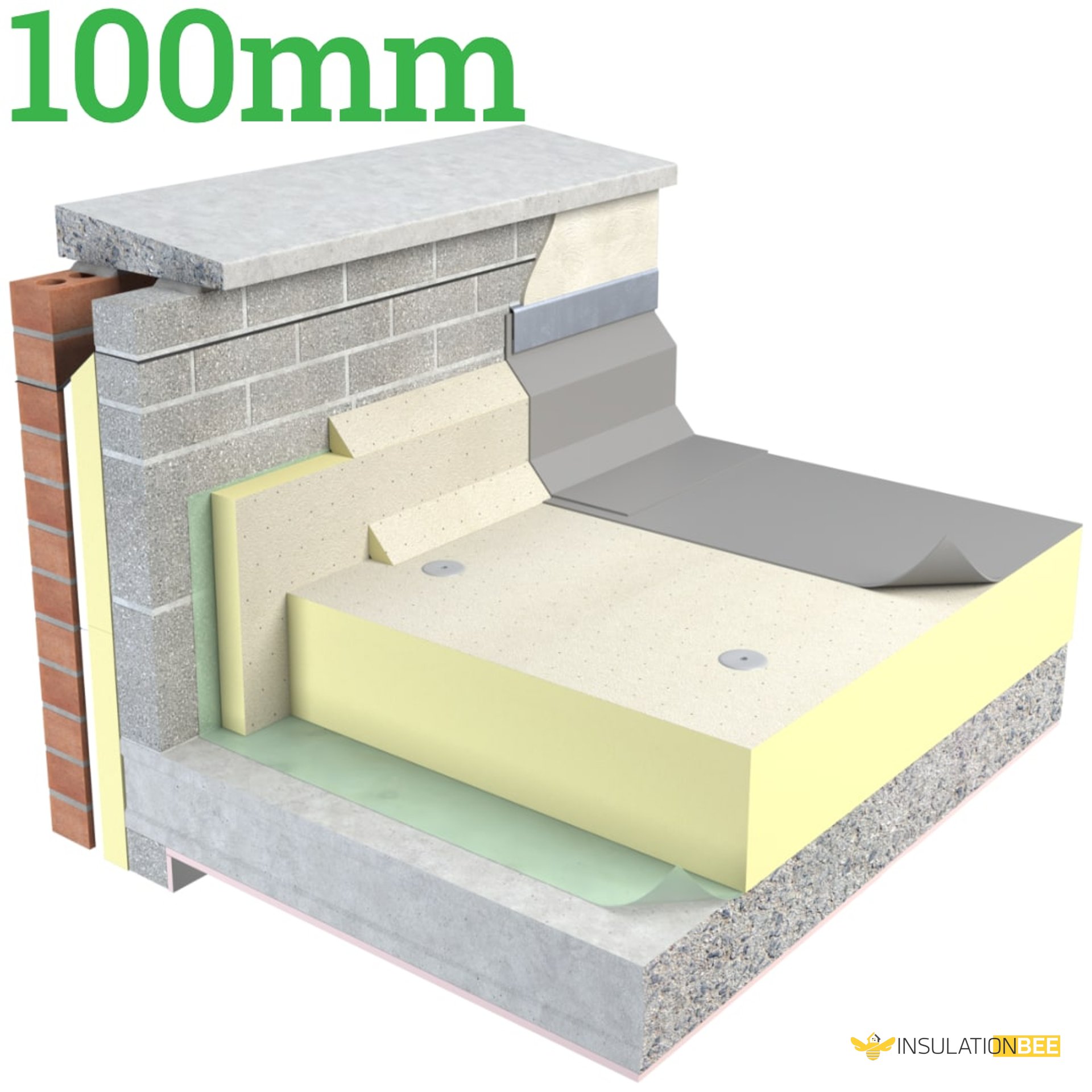

Engineered for thermal insulation and slope creation on restricted-access concrete, timber, or metal flat roof decks in both new and refurbished properties, this board serves dual functionality.

When paired with a vapor control layer and a mechanically fixed single-ply roof waterproofing membrane, the 100mm Unilin FR/ALU achieves optimal performance.

Installation involves laying boards over the vapor control layer in a break-bonded pattern to ensure complete coverage.

For reliable installation, 100mm Unilin flat roof insulation boards must be secured using approved mechanical fixings.

Roof Design

Follow the recommendations outlined in BS 4841: Part 3 and those published by the Single Ply Roofing Association.

Falls

Flat roof falls should be consistent and sufficiently steep to prevent water pooling.

Fire Performance

Fire rating, determined through EN 13501-5 and BS 476 Part 3 'External Fire Exposure Roof Test' testing, depends on the waterproofing system selected.

Note: This board was formerly known as 100mm Xtratherm Thin-R FR/ALU Flat Roof PIR Insulation Board
