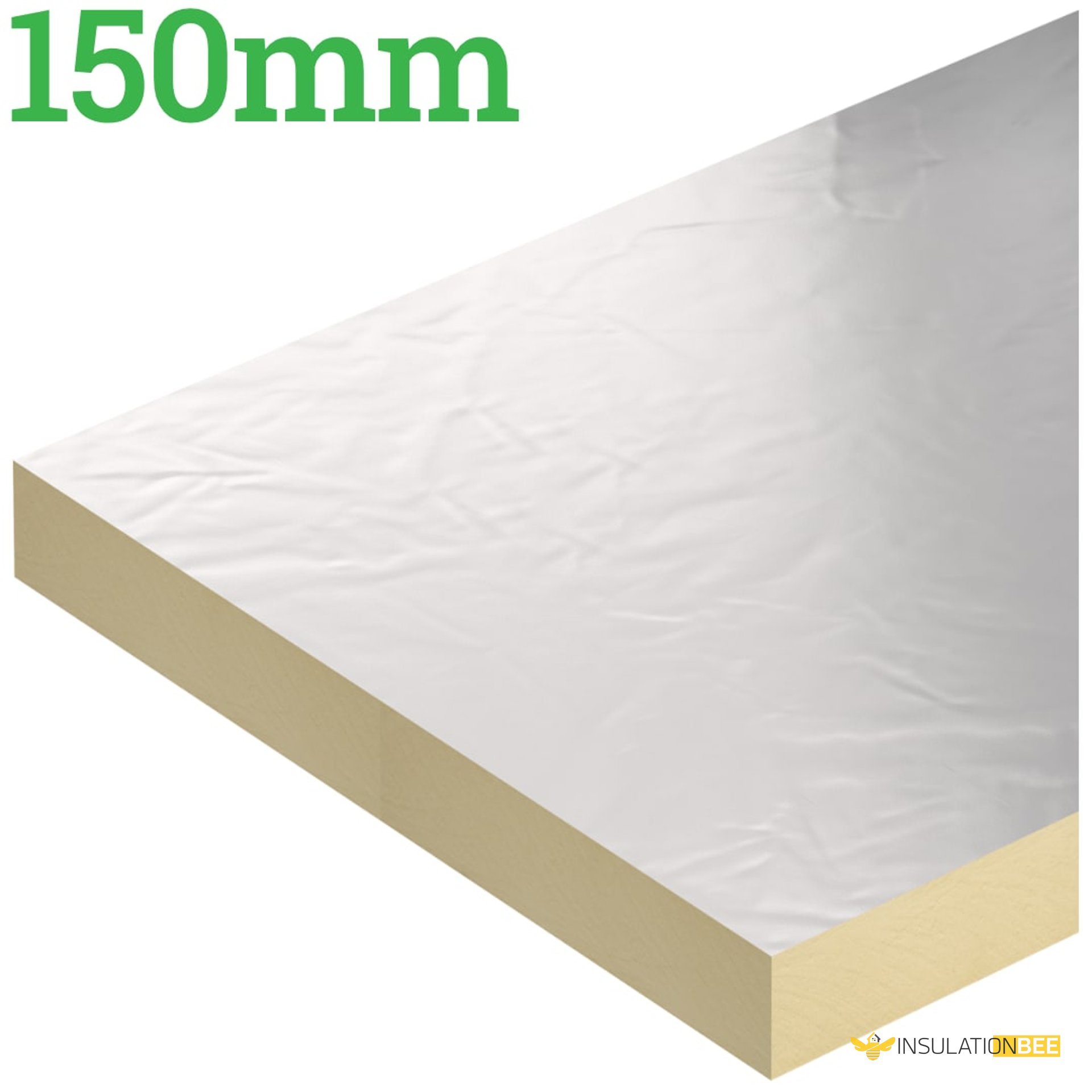

Unilin Thin-R TR/MG 130-150mm Tapered Roof Board

The 130-150mm Unilin Thin-R TR/MG Tapered Roof Insulation delivers superior thermal performance using Polyisocyanurate foam with mineral coated glass facers on both sides. This premium board is engineered for installation beneath single-ply fully adhered roof membranes, single-ply waterproofing systems, and partially bonded built-up felt applications. The product holds an Environmental Product Declaration (EPD) certified by IGBC. Contact our technical support team for additional specifications and guidance.

Product Specification

Range: 130-150mm TR/MG

Thickness: 30-50mm, 50-70mm, 70-90mm, 90-110mm (1:60)

Length: 1200mm

Width: 1200mm

Board Size: 1200mm x 1200mm

Pack Size: 2 sheets

Pack Coverage: 2.88m2

Pack Weight: 12kg

Thermal conductivity: 0.024 – 0.027 (WmK)

Compressive Strength: >150 kPa @ 10% compression

Material: PIR

Inner facing Mineral coated glass facer

Outer facing Mineral coated glass facer

Application: Flat Roof insulation

Density (Foam Core): 32 kg/m3

Reaction to Fire: Euroclass E

Features & Benefits

1. Dimensions: 1200mm length x 1200mm width x 130-150mm thickness
2. Fall: 1:60
3. Suitable for refurbishment projects and new builds
4. Ideal for full bonding with an approved adhesive
5. Environmentally friendly: Zero Ozone Depletion Potential (ODP), Low Global Warming Potential (GWP), and non-deleterious materials
6. Compressive Strength: >150 kPa @ 10% compression
7. Compatible with adhesively bonded single ply roofing membranes installed on mechanically fixed boards
8. Each board covers an area of 1.44m²
9. This pack contains two boards, covering a total area of 2.88m²
10. Foam core density: 32kg/m³

Additional Benefits

1. Adaptable for both renovation and new construction applications
2. Provides excellent dimensional stability and long-term durability
3. Simple installation and complete adhesion using approved adhesives
4. Environmentally responsible product with zero ODP and minimal GWP
5. Meets non-deleterious materials requirements
6. Delivers robust compressive strength to resist loading and pressure
7. Works effectively with adhesively bonded single ply roofing membranes
8. Provides efficient area coverage per board
9. High-performance foam core with 32kg/m³ density for consistent results

Vapour Control Layer

A vapour control layer should be lapped and sealed beneath the insulation board. When employing fully adhered systems, board joints must be taped in accordance with the specific adhesive system being used.

Bonded Board Installation

The insulation boards are set into a bitumen layer on 3G type felt compliant with BS EN 13707: 2013 (Flexible sheets for waterproofing. Reinforced bitumen sheets for roof waterproofing) and adhered to the deck. Unilin recommends that all systems incorporate mechanical fixings or be bonded using appropriate adhesive products.
