Unilin Thin-R TR/MG 110-130mm Tapered Roof Board

The 110-130mm Unilin TR/MG Tapered Roof Insulation delivers superior performance using Polyisocyanurate foam with mineral-coated glass facers on both sides. This rigid board system is engineered for installation beneath single-ply fully adhered roof membranes, single-ply waterproofing systems, and partially bonded built-up felt applications. The product holds an Environmental Product Declaration (EPD) certified by IGBC. For technical guidance, contact our specialist support team.

Product Specification

Range: 110-130mm TR/MG

Thickness: 30-50mm, 50-70mm, 70-90mm, 90-110mm (1:60)

Length: 1200mm

Width: 1200mm

Board Size: 1200mm x 1200mm

Pack Size: 4 sheets

Pack Coverage: 5.76m2

Pack Weight: 12kg

Thermal conductivity: 0.024 – 0.027 (WmK)

Compressive Strength: >150 kPa @ 10% compression

Material: PIR

Inner facing Mineral coated glass facer

Outer facing Mineral coated glass facer

Application: Flat Roof insulation

Density (Foam Core): 32 kg/m3

Reaction to Fire: Euroclass E

Features & Benefits: Unilin TR/MG Tapered Roof Board 110-130mm

1. Dimensions: 1200mm length x 1200mm width x 110-130mm thickness
2. Fall: 1:60
3. Suitable for refurbishment projects and new builds
4. Ideal for full bonding with an approved adhesive
5. Environmentally friendly: Zero Ozone Depletion Potential (ODP), Low Global Warming Potential (GWP), and non-deleterious materials
6. Compressive Strength: >150 kPa @ 10% compression
7. Compatible with adhesively bonded single ply roofing membranes installed on mechanically fixed boards
8. Each board covers an area of 1.44m²
9. This pack contains four boards, covering a total area of 5.76m²
10. Foam core density: 32kg/m³

Features and Benefits:

1. Adaptable for both refurbishment and new construction applications
2. Provides excellent dimensional stability and long-term durability
3. Simple installation process with full adhesive bonding using approved products
4. Environmentally responsible with zero ODP and minimal GWP
5. Meets non-deleterious materials requirements
6. Delivers robust compressive strength for load-bearing applications
7. Works effectively with adhesively bonded single ply roofing membranes
8. Maximises coverage efficiency with each individual board
9. Premium foam core at 32kg/m³ density ensures consistent performance

Vapour control layer

A vapour control layer lapped and sealed should be used below the insulation Board. When using fully adhered systems, board joints should be taped subject to adhesive system being used.

Bonded boards

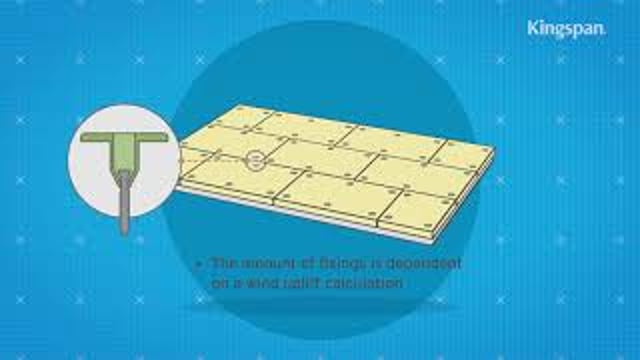

The insulation boards are embedded in a layer of bitumen on a 3G type felt to BS EN 13707: 2013 (Flexible sheets for waterproofing. Reinforced bitumen sheets for roof waterproofing that has been adhered to the deck. (Unilin recommend that all systems should have mechanical fixings included or be adhered using other suitable adhesive).
