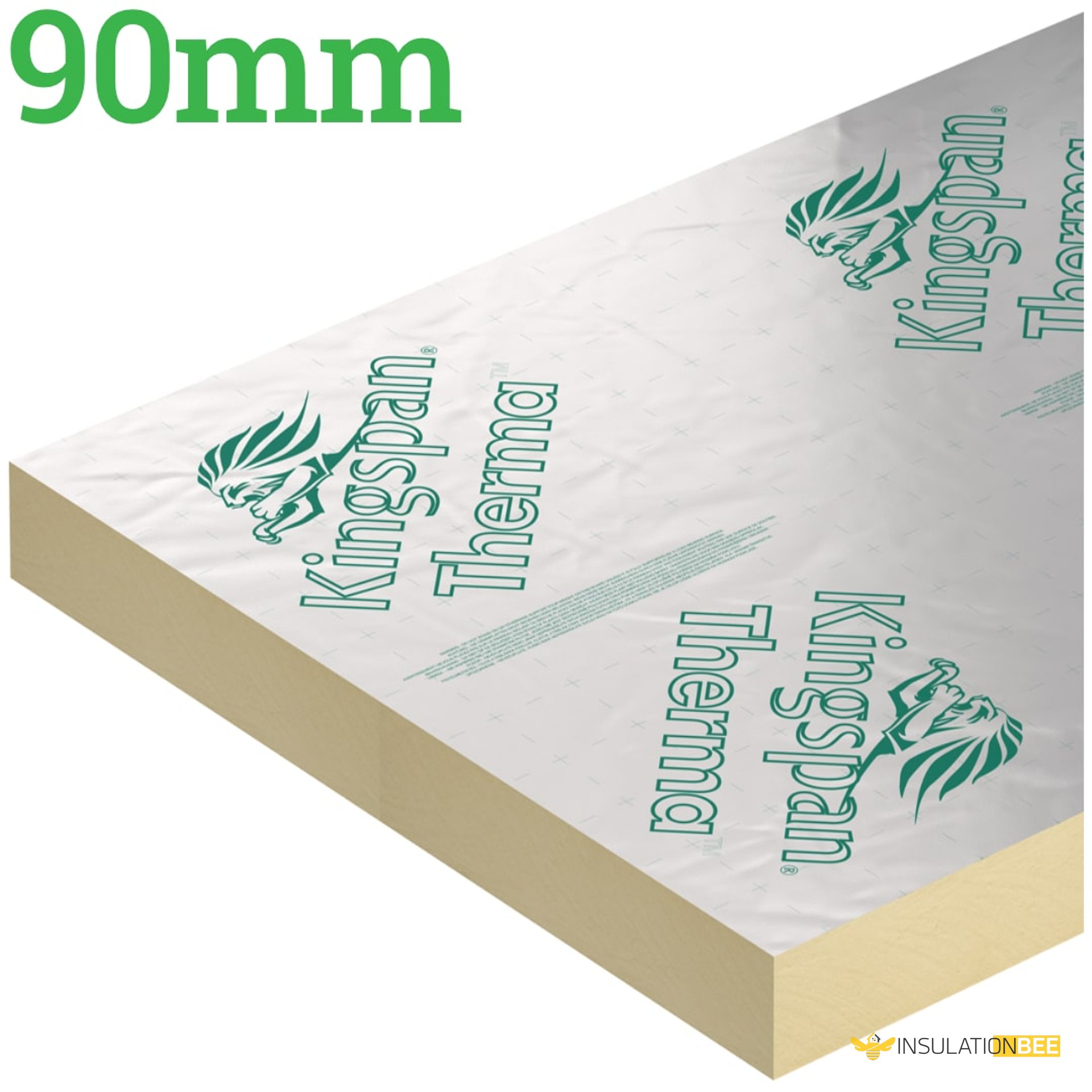

Kingspan Thermafloor TF70 90mm Floor Insulation

90mm Kingspan Thermafloor TF70 delivers outstanding thermal performance as a floor insulation board, with a thermal conductivity rating of 0.022 W/mK. Suitable for both solid and suspended floor applications, this product works equally well in new builds and retrofit installations. These 90mm insulation boards are straightforward to cut and position, making installation efficient and straightforward. Multiple thicknesses are available to meet varying project specifications.

Amongst the most thermally effective 90mm floor insulation boards, this lightweight product is convenient to move, position, and fit. It integrates seamlessly with most underfloor heating arrangements, helping to minimise expenses on associated works such as ground preparation and pipework installation.

Properties

Brand: Kingspan

Thickness: 90mm

Length: 2400mm

Width: 1200mm

Weight: 1.84kg | Thermafloor TF70 has an approximate weight of 3.50 kg/m2 at a thickness of 90 mm.

Model: 90mm Thermapitch TF70

Dimensions: 2,400mm x 1,200mm x 90mm

Compressive Strength: The compressive strength typically exceeds 140 kPa at 10% compression.

Density: 32 Kg/m3

Length: 2400mm

Material: Polyisocyanurate (Kingspan PIR Insulation)

R-Value: 4.05m2K/W

Size: 1200mm x 2400mm

Thermal Conductivity: 0.022 W/mk

Finish: 90mm TF70 is faced on both sides with a low emissivity composite foil, autohesively bonded to the insulation core during manufacture.

Applications: High performance floor insulation.

Fire Resistance: Under System 4 AVCP, 90mm Thermafloor TF70 has a Euroclass rating of F.

Water vapour resistance: 110 MNs/g

BBA Certified: Yes, No. 14/5133

Features: Improves the Thermal Resistance | Unaffected by air infiltration | Resistant to the passage of water vapour

Here are some "Applications":

The 90mm insulation suits a broad spectrum of applications, from solid concrete ground-based floors and beam and dense block floors to suspended timber ground floors and timber floors on battens.

The Facings

Throughout manufacture, Kingspan 90mm PIR receives a low emissivity composite foil facing on both surfaces, functioning as a reflective layer to boost the thermal resistance of any unventilated cavity adjacent to the board.

The Core

90mm Kingspan Thermafloor TF70 core is manufactured using Nilflam® technology, a premium fibre-free rigid thermoset polyisocyanurate (PIR) material. The production process employs a blowing agent with zero Ozone Depletion Potential (ODP) and minimal Global Warming Potential (GWP).

Compressive Strength

When assessed according to BS EN 826:2013 (Thermal insulating products for building applications. Determination of compression behavior), 90mm Kingspan PIR insulation typically achieves compressive strength exceeding 150 kPa at 10% compression.

Water vapour resistance

Testing to BS EN 12086:2013 (Thermal insulating products for building applications. Determination of water vapor transmission properties) shows this product typically delivers resistance well above 100 MNs/g.

Durability

The longevity of 90mm TF70 Floor Insulation relies on correct installation, adequate structural support, and appropriate usage conditions. When properly fitted, this product can deliver extended service life.

Fire performance

90mm Kingspan Insulation TF70 achieves an F Euroclass rating under System 4 AVCP. When deployed in pitched roof applications and positioned beneath appropriate roof coverings, it can satisfy national standards for external fire exposure.
