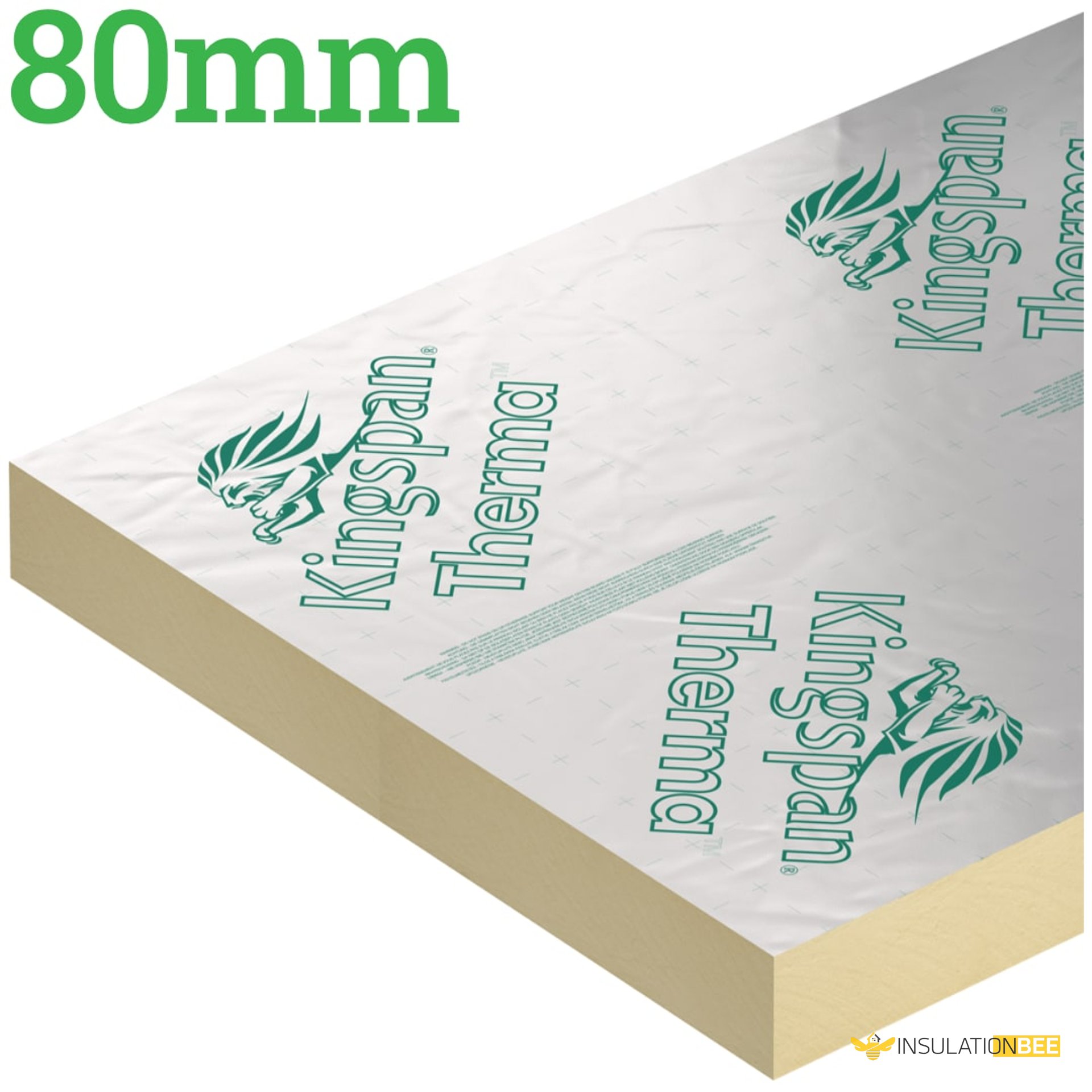

Kingspan Thermafloor TF70 80mm Floor Insulation

Kingspan Thermafloor TF70 at 80mm thickness delivers outstanding thermal performance for floor insulation applications, with a thermal conductivity rating of just 0.022 W/mK. This PIR insulation board suits both solid and suspended floor systems in new builds and refurbishment work. The 80mm boards are straightforward to cut and position, making installation efficient and hassle-free. Available in multiple thicknesses to match your specific thermal requirements.

Amongst high-performance 80mm floor insulation options, this lightweight product offers excellent transportability and ease of installation. It works seamlessly with most underfloor heating arrangements, potentially lowering expenses associated with groundwork and service routing.

Properties

Brand: Kingspan

Thickness: 80mm

Length: 2400mm

Width: 1200mm

Weight: 1.84kg | Thermafloor TF70 has an approximate weight of 3.50 kg/m2 at a thickness of 80 mm.

Model: 80mm Thermapitch TF70

Dimensions: 2,400mm x 1,200mm x 80mm

Compressive Strength: The compressive strength typically exceeds 140 kPa at 10% compression.

Density: 32 Kg/m3

Length: 2400mm

Material: Polyisocyanurate (Kingspan PIR Insulation)

R-Value: 3.60m2K/W

Size: 1200mm x 2400mm

Thermal Conductivity: 0.022 W/mk

Finish: 80mm TF70 is faced on both sides with a low emissivity composite foil, autohesively bonded to the insulation core during manufacture.

Applications: High performance floor insulation.

Fire Resistance: Under System 4 AVCP, 80mm Thermafloor TF70 has a Euroclass rating of F.

Water vapour resistance: 110 MNs/g

BBA Certified: Yes, No. 14/5133

Features: Improves the Thermal Resistance | Unaffected by air infiltration | Resistant to the passage of water vapour

Applications

This 80mm insulation product performs well across numerous floor types, including concrete slab foundations, beam and block constructions, suspended timber ground floors, and battened timber systems.

Foil Facing Details

The manufacturing process applies a low emissivity composite foil facing to both sides of Kingspan 80mm PIR boards. This reflective layer boosts thermal performance by enhancing resistance within unventilated cavities adjacent to the board surface.

Core Material

The 80mm Kingspan Thermafloor TF70 core utilises Nilflam® technology, delivering a premium fibre-free rigid thermoset polyisocyanurate (PIR) insulation product. Manufacturing employs a zero Ozone Depletion Potential (ODP) blowing agent with minimal Global Warming Potential (GWP) impact.

Compression Performance

Testing to BS EN 826:2013 (Thermal insulating products for building applications. Determination of compression behavior) demonstrates that 80mm Kingspan PIR insulation typically achieves compressive strength exceeding 150 kPa at 10% compression.

Moisture Resistance

Under BS EN 12086:2013 (Thermal insulating products for building applications. Determination of water vapor transmission properties) testing protocols, this product consistently delivers water vapour resistance well above 100 MNs/g.

Long-Term Performance

The lifespan of 80mm TF70 Floor Insulation depends on correct installation, adequate structural support, and appropriate usage conditions. When properly fitted, the material can maintain performance indefinitely.

Fire Safety

80mm Kingspan Insulation* TF70 achieves an F Euroclass rating under System 4 AVCP. When installed in pitched roof applications beneath suitable roof coverings, it satisfies national external fire exposure requirements.
