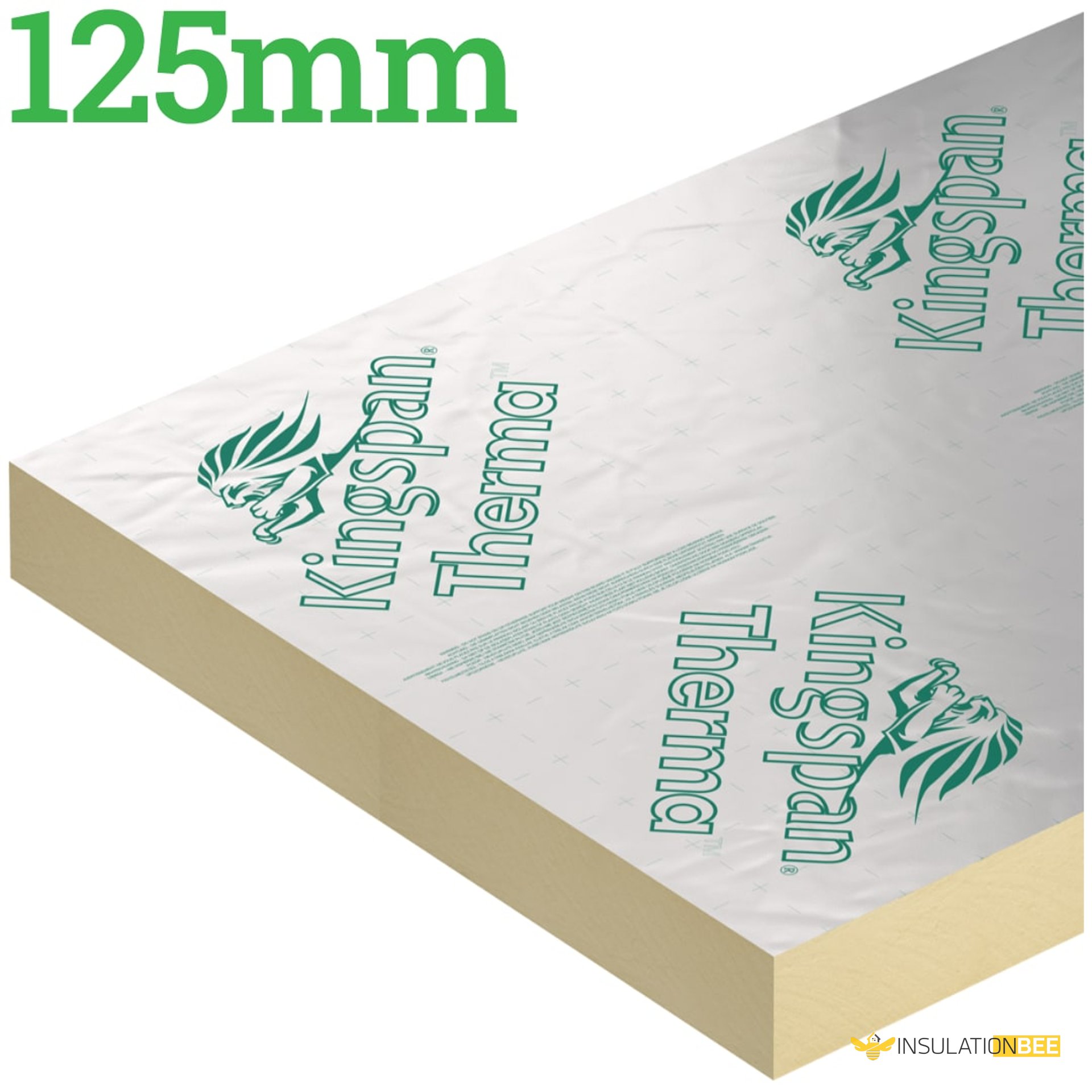

Kingspan Thermafloor TF70 125mm Floor Insulation

125mm Kingspan Thermafloor TF70 delivers outstanding thermal performance as a floor insulation board, with a thermal conductivity rating of 0.022 W/mK. Suitable for both solid and suspended floor applications, this product works equally well in new builds and refurbishment schemes. The 125mm insulation boards are straightforward to cut and position, making installation efficient and straightforward. Multiple thickness options are available to match your specific project needs.

Among the most thermally effective 125mm floor insulation boards, this lightweight product offers excellent transportability and ease of installation. It integrates seamlessly with most underfloor heating systems, potentially lowering expenses associated with ground preparation and service routing.

Properties

Brand: Kingspan

Thickness: 125mm

Length: 2400mm

Width: 1200mm

Weight: 1.84kg | Thermafloor TF70 has an approximate weight of 3.50 kg/m2 at a thickness of 125 mm.

Model: 125mm Thermapitch TF70

Dimensions: 2,400mm x 1,200mm x 125mm

Compressive Strength: The compressive strength typically exceeds 140 kPa at 10% compression.

Density: 32 Kg/m3

Length: 2400mm

Material: Polyisocyanurate (Kingspan PIR Insulation)

R-Value: 5.65m2K/W

Size: 1200mm x 2400mm

Thermal Conductivity: 0.022 W/mk

Finish: 125mm TF70 is faced on both sides with a low emissivity composite foil, autohesively bonded to the insulation core during manufacture.

Applications: High performance floor insulation.

Fire Resistance: Under System 4 AVCP, 125mm Thermafloor TF70 has a Euroclass rating of F.

Water vapour resistance: 110 MNs/g

BBA Certified: Yes, No. 14/5133

Features: Improves the Thermal Resistance | Unaffected by air infiltration | Resistant to the passage of water vapour

Here are some "Applications":

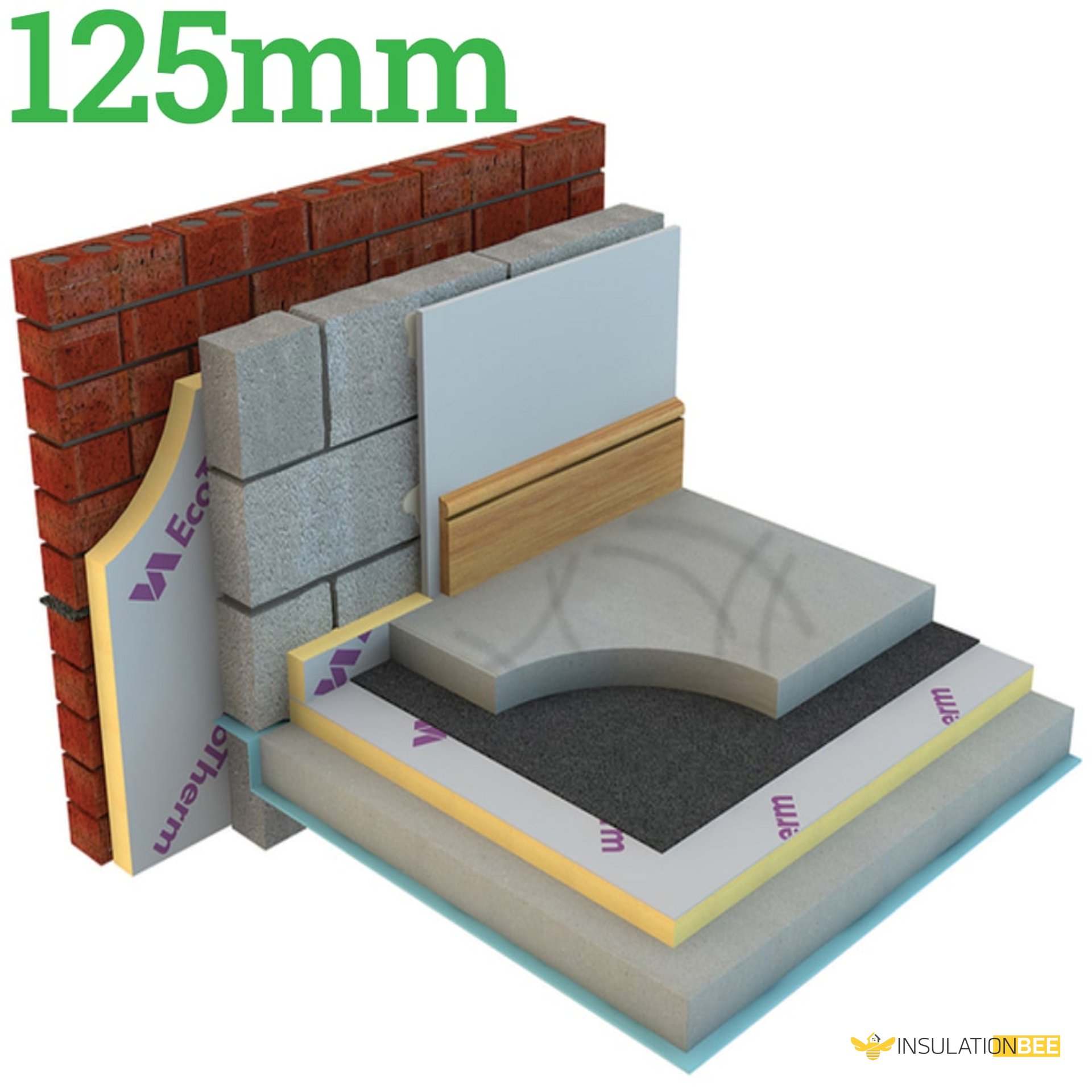

The 125mm insulation offers versatile installation options across concrete slab floors, beam and block construction, suspended timber ground floors, and battened timber floors.

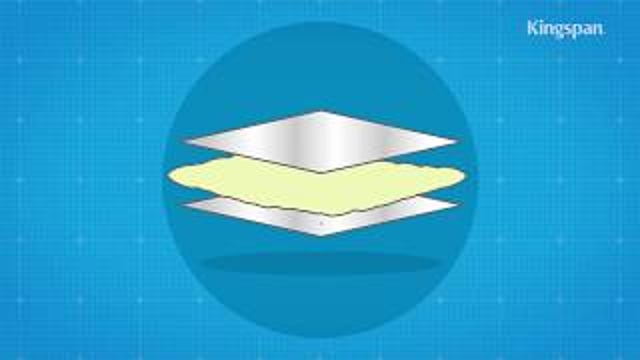

The Facings

Throughout manufacture, Kingspan 125mm PIR receives a low emissivity composite foil facing on both surfaces. This reflective layer boosts thermal resistance in any unventilated cavity space adjacent to the board.

The Core

125mm Kingspan Thermafloor TF70 employs Nilflam® technology, a premium fiber-free rigid thermoset polyisocyanurate (PIR) material. Production utilises a blowing agent with zero Ozone Depletion Potential (ODP) and minimal Global Warming Potential (GWP).

Compressive Strength

When assessed under BS EN 826:2013 (Thermal insulating products for building applications. Determination of compression behavior), 125mm Kingspan PIR insulation typically achieves compressive strength exceeding 150 kPa at 10% compression.

Water vapour resistance

Testing to BS EN 12086:2013 (Thermal insulating products for building applications. Determination of water vapor transmission properties) demonstrates this product typically delivers resistance well above 100 MNs/g.

Durability

Longevity of 125mm TF70 Floor Insulation depends on correct installation, adequate structural support, and appropriate usage conditions. With proper installation, the product can perform reliably for many years.

Fire performance

125mm Kingspan Insulation TF70 achieves an F Euroclass rating under System 4 AVCP. When installed in pitched roof applications beneath appropriate roof covering, it meets national standards for external fire exposure.
