Cordek 75mm Heaveguard Ground Heave Protection

Cordek 75mm Heaveguard is a lightweight, compressible Expanded Polystyrene (EPS) material designed to protect foundations from ground heave damage. This essential component shields against lateral heave forces, particularly when installed on the inner surface of piled ground beams or deep trench fill foundations.

Product specification

Brand: Cordek®

Model: 75mm Heaveguard

Thickness: 75mm

Length: 2400mm

Width: 1200mm

Dimensions: 2,400mm x 1,200mm x 75mm

Colour: Light green

Material: Expanded Polystyrene (EPS)

Profile: Compressible-fill material

Shipping method: Rigid Vehicle ǀ Courier

Applications: Foundations ǀ Piled Ground Beams

BBA Certified: Yes (No.17/5448)

Soil heave potential: Medium

Features: Protection Against Ground Heave ǀ Foundations

Safe load: 20 kN/m2

Manufacturer: Cordek Clay Heave Board Heaveguard®

Fail load: 40 kN/m2 produce 50% compression

Attributes

1. Reduces lateral force impact on structural integrity
2. BBA certified for proven performance standards
3. Meets NHBC Technical Standards requirements
4. Supplied in multiple sheet dimensions and thicknesses for varied project needs

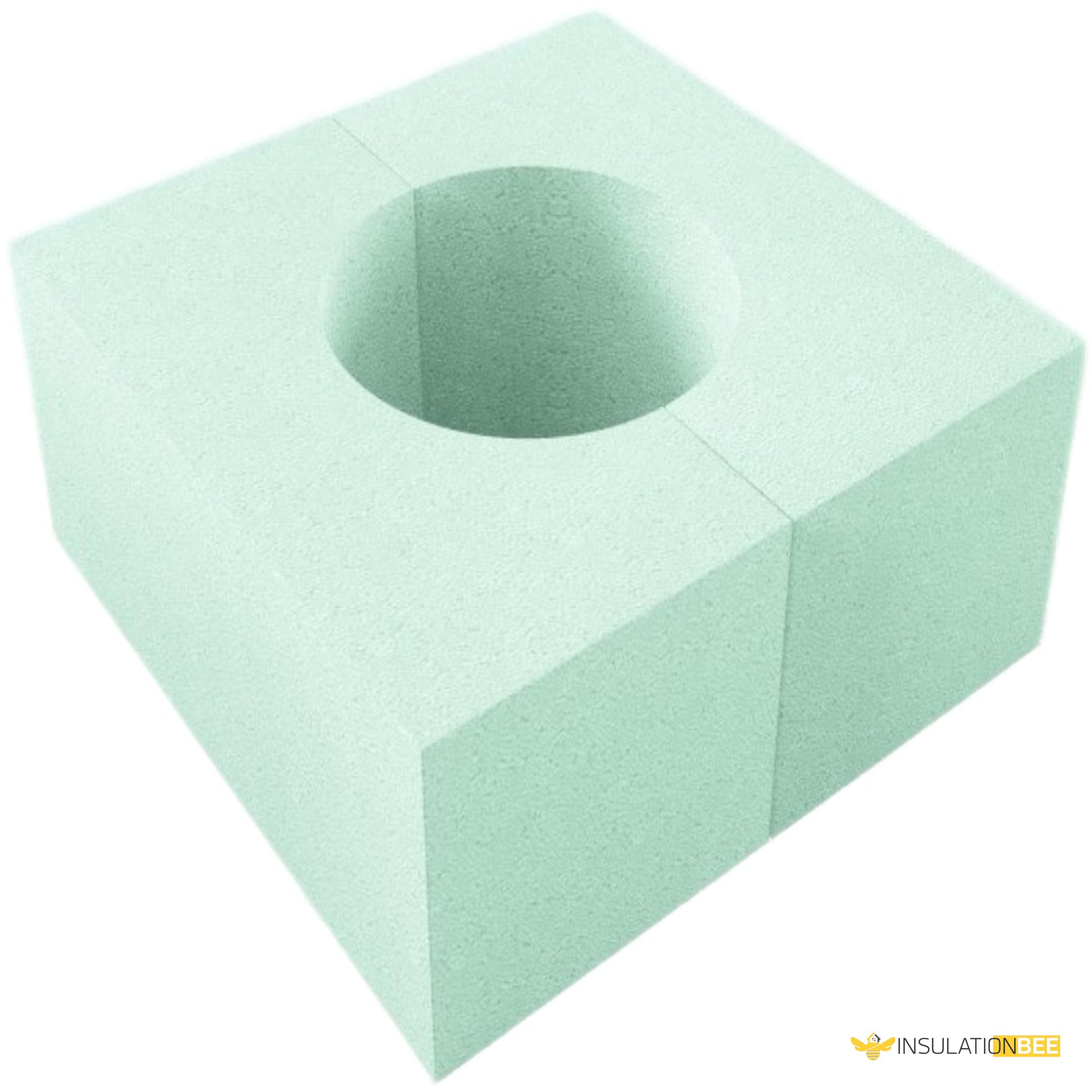

5. Works as a pile collar to support installation of Cordek Cellcore products
6. Distinctive green colour makes identification straightforward on site
7. 75mm polystyrene insulation board for ground heave applications

This 75mm expanded polystyrene (EPS) material from Cordek is engineered specifically to defend foundations against ground heave movement and subsidence risks.

Utilizations

75mm Cordek Heaveguard protects against lateral heave forces, commonly positioned on the inner surface of piled ground beams or deep trench fill foundations to prevent structural damage.

Suitability

The appropriate 75mm Heaveguard thickness depends on anticipated lateral movement and void recommendations specified by NHBC standards. Note that Heaveguard and similar compressible polystyrenes only compress meaningfully when loads exceed 20 kN/m2, with 50% compression occurring at 40 kN/m2. For this reason, 75mm Heaveguard is unsuitable for use beneath ground floor slabs, piled beams, or pile caps.

*When analysis exceeds 60 or shrinkage potential is greater than High, contact the InsulationBee Technical Team for guidance.
