56mm Unilin Safe-R Phenolic Soffit Board

The 56mm Unilin Safe-R SR/STP Phenolic Soffit Insulation Board provides dependable thermal and fire performance for ceiling applications in commercial and residential properties. Combining 50mm of phenolic insulation with low emissivity aluminium foil facings and a bonded 6mm building panel, this board delivers a robust, low-maintenance surface that accepts decorative finishes.

Product Details

Brand: Unilin®

Model: 56mm SR/STP Soffit Board

Thickness: 56mm - 50mm Phenolic insulation + 6mm Building Panel

Length: 2400mm

Width: 1200mm

Pack Quantity: 20

Board Coverage: 2.88m2

Pack Coverage: 57.60m2

Pack Weight: 460kg

Dimensions: 2,400mm x 1,200mm x 56mm

Compressive Strength: >120 (kPa)

Material: Phenolic resins ǀ Building Panel

Profile: Square Edge

R-Value: 2.35m2K/W

Thermal Conductivity: 0.021W/mK

Fire Classification: Euroclass B s1 d0

Profile: Straight

Inner facing: Foil facing

Outer facing: Foil facing

Type: Phenolic Insulation

Type of finishing board: 6mm Building panel

Shipping method: Articulated Vehicle ǀ Courier

Applications: Structural Ceiling ǀ Soffit

BBA Certified: Yes (no. 10/4803)

Vapour Control Layer: Yes, build in

ETA Notification: Yes

Features: Accepts Decorative Finish

About

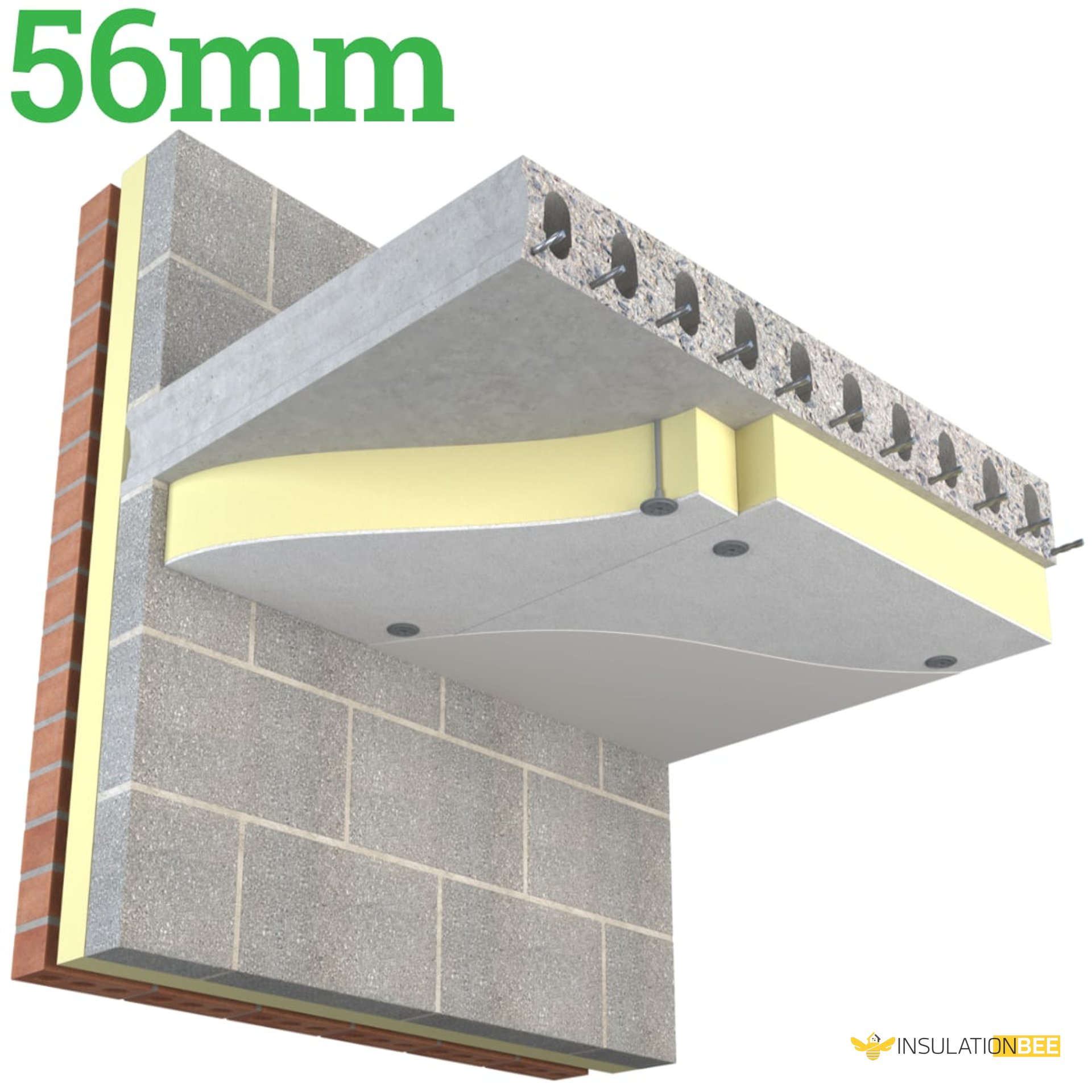

1. This 56mm Unilin Safe-R SR/STP Phenolic Soffit insulation Board offers flexible installation methods: direct fixing to concrete slabs, mounting onto battens, or application with proprietary fixing systems for a level finish. The lightweight, rigid construction makes installation straightforward and efficient.
2. The non-combustible building panel bonded facing provides water and impact resistance, safeguarding the surface for decorative applications.
3. When installing 56mm Safe-R Soffit Plus in soffit areas for new builds or refurbishment work, you'll benefit from excellent U-Values with reduced insulation depth. The product achieves outstanding thermal conductivity of 0.020 W/mK and carries a Euroclass B fire rating.

Advantages

1. Robust 50mm Phenolic insulation plus 6mm building panel offering superior impact resistance.
2. Fire Classification B-s1, d0 certified for enhanced safety performance.
3. Compatible with decorative finishes for design flexibility.
4. Reduced thermal bridging for better energy efficiency.
5. Low lambda value delivering improved U-Values.

Handling, Cutting, and Storage:

1. Unilin Soffit insulation should be kept on a clean, level, raised surface and protected with appropriate covering.
2. Polythene wrapping alone does not provide adequate weather protection for the insulation.
3. Take care to prevent damage during storage and on-site handling throughout construction.
4. Always use suitable personal protective equipment (PPE) when working with insulation board.

Certification and Standards:

1. BBA Certification Number: 10/4803.
2. Compliance with BS EN ISO 9001 Quality Management System.
3. Adherence to BS EN ISO 14001 Environmental Management System.
4. Conformance with BS EN 13166 standards.
