Unilin Safe-R 106mm Phenolic Soffit Board

The 106mm Unilin Safe-R SR/STP Phenolic Soffit Insulation Board delivers dependable thermal and fire performance for structural ceiling applications in commercial and residential properties. This premium 100mm phenolic insulation board combines low emissivity aluminium foil facings with a bonded 6mm building panel, creating a tough, low-maintenance surface that accepts decorative finishes.

Product Details

Brand: Unilin®

Model: 106mm SR/STP Soffit Board

Thickness: 106mm - 100mm Phenolic insulation + 6mm Building Panel

Length: 2400mm

Width: 1200mm

Pack Quantity: 10

Board Coverage: 2.88m2

Pack Coverage: 28.80m2

Pack Weight: 280kg

Dimensions: 2,400mm x 1,200mm x 106mm

Compressive Strength: >120 (kPa)

Material: Phenolic resins ǀ Building Panel

Profile: Square Edge

R-Value: 5.0m2K/W

Thermal Conductivity: 0.021W/mK

Fire Classification: Euroclass B s1 d0

Profile: Straight

Inner facing: Foil facing

Outer facing: Foil facing

Type: Phenolic Insulation

Type of finishing board: 6mm Building panel

Shipping method: Articulated Vehicle ǀ Courier

Applications: Structural Ceiling ǀ Soffit

BBA Certified: Yes (no. 10/4803)

Vapour Control Layer: Yes, build in

ETA Notification: Yes

Features: Accepts Decorative Finish

About

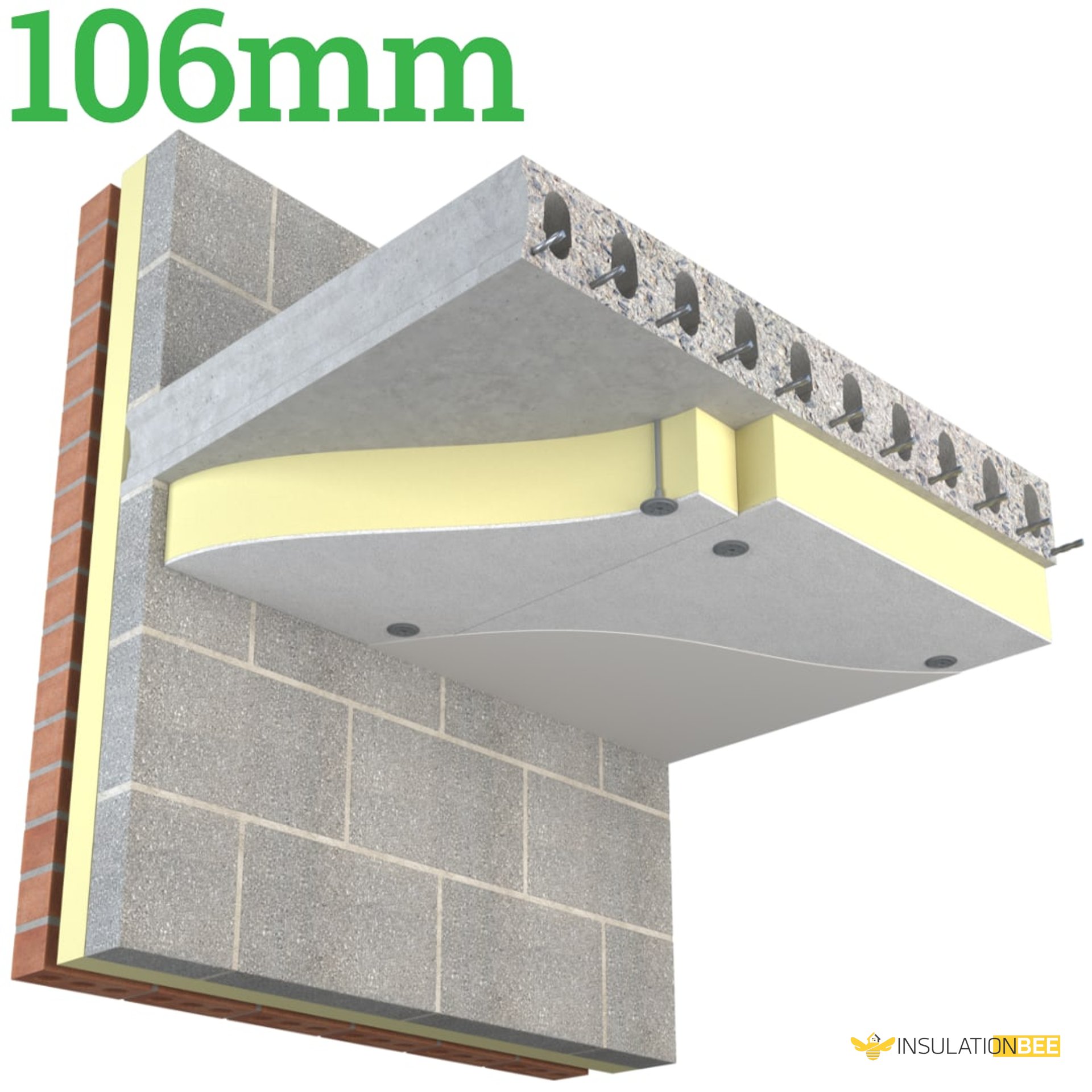

1. This 106mm Unilin Safe-R SR/STP Phenolic Soffit insulation Board suits multiple installation methods: direct fixing to concrete slabs, mounting onto battens, or proprietary fixing systems for a level, smooth finish. The lightweight, rigid construction makes fitting straightforward and efficient.
2. The integrated non-combustible building panel facing provides water and impact resistance, safeguarding the product and supporting decorative finish applications.
3. For soffit installations in new builds or renovation work, this 106mm Safe-R Soffit Plus achieves excellent U-Values with reduced insulation depth. It features outstanding thermal conductivity of 0.020 W/mK and carries a Euroclass B fire rating.

Advantages

1. Robust 100mm Phenolic insulation plus 6mm building panel with superior impact resistance.
2. Fire Classification B-s1, d0 certified for enhanced safety performance.
3. Works with decorative finishes for design flexibility.
4. Reduced thermal bridging supports improved energy efficiency.
5. Low lambda value delivers better U-Value performance.

Handling, Cutting, and Storage:

1. Unilin Soffit insulation should be positioned on a clean, level surface elevated from ground level and protected by a covering.
2. Polythene wrapping alone does not provide adequate weather protection for the insulation.
3. Take care to prevent damage during storage and on-site handling throughout construction.
4. Always use suitable personal protective equipment (PPE) when working with insulation board.

Certification and Standards:

1. BBA Certification Number: 10/4803.
2. Compliance with BS EN ISO 9001 Quality Management System.
3. Adherence to BS EN ISO 14001 Environmental Management System.
4. Conformance with BS EN 13166 standards.
