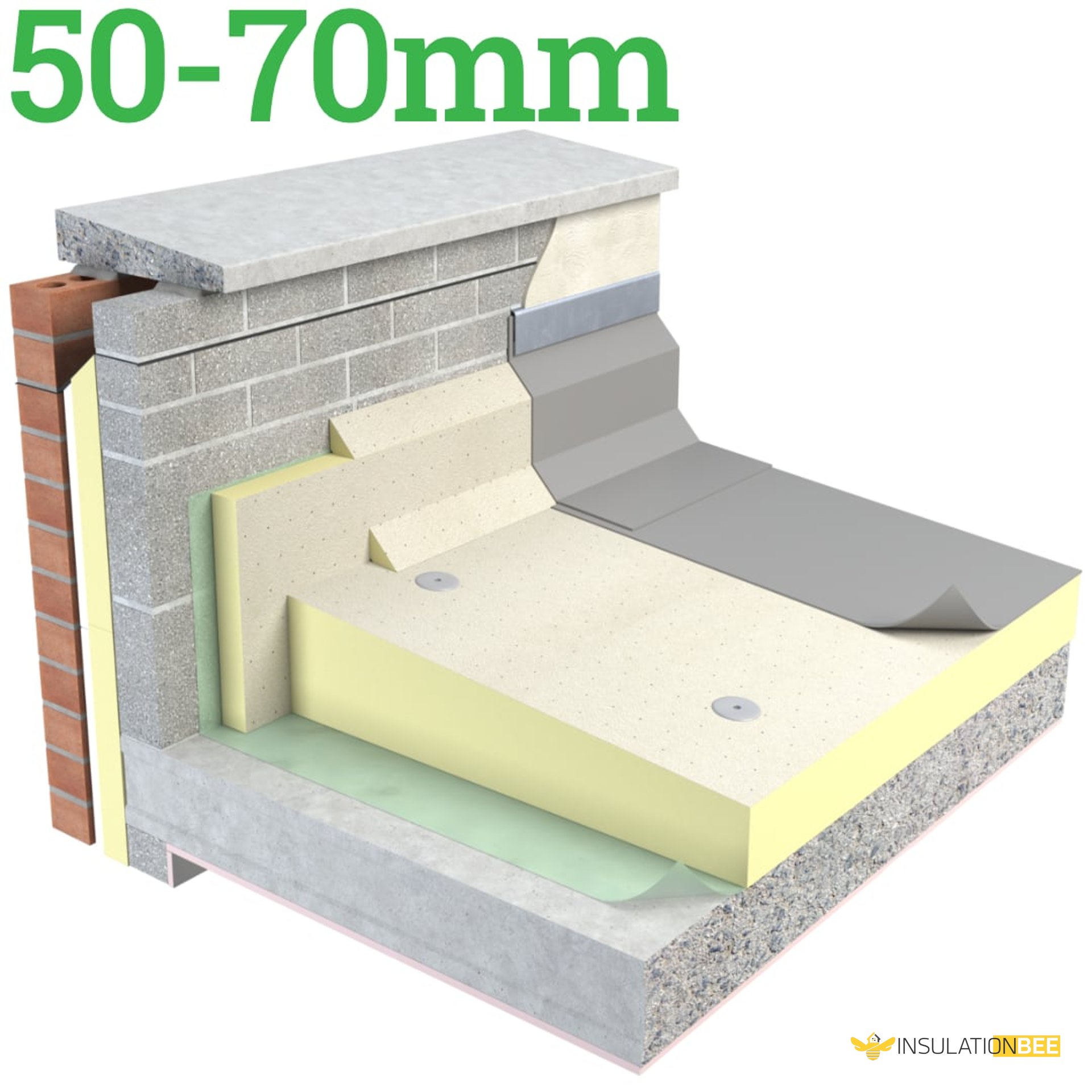

Unilin Thin-R 50-70mm TR/BGM Tapered Roof Insulation Board

50-70mm Unilin Thin-R TR/BGM Tapered Flat Roof Insulation Board is a high-performance polyisocyanurate tapered roof insulation with polypropylene fleece finished bitumen/glass fibre working surface on one side and mineral glass facing on the other (non-reversible). The TR-BGM specification delivers optimal compatibility with most bitumen-based partially bonded built-up roofing systems.

This premium product forms part of Unilin's comprehensive range of tapered roof boards, providing complete solutions for tapered roof applications. An Environmental Product Declaration (EPD), certified by the IGBC, is available upon request. Contact our technical support team for additional information.

Product Specification

Range: 50-70mm TR/BGM

Thickness: 30-50mm, 50-70mm, 70-90mm, 90-110mm (1:60)

Length: 1200mm

Width: 1200mm

Board Size: 1200mm x 1200mm

Pack Size: 4 sheets

Pack Coverage: 5.76m2

Pack Weight: 12kg

Thermal conductivity: 0.024 – 0.027 (WmK)

Compressive Strength: >150 kPa @ 10% compression

Material: PIR

Inner facing Mineral Glass

Outer facing Bitumen/glass fibre

Application: Flat Roof insulation

Density (Foam Core): 32 kg/m3

Reaction to Fire: Euroclass E

Features & Benefits

1. Dimensions: 1200mm length x 1200mm width x 50-70mm thickness
2. Fall: 1:60
3. Suitable for refurbishment projects and new builds
4. Ideal for full bonding with an approved adhesive
5. Environmentally friendly: Zero Ozone Depletion Potential (ODP), Low Global Warming Potential (GWP), and non-deleterious materials
6. Compressive Strength: >150 kPa @ 10% compression
7. Compatible with adhesively bonded single ply roofing membranes installed on mechanically fixed boards
8. Each board covers an area of 1.44m²
9. This pack contains four boards, covering a total area of 5.76m²
10. Foam core density: 32kg/m³

Key Advantages

1. Comprehensive solution for both refurbishment and new construction projects
2. Delivers excellent dimensional stability and long-term durability
3. Simple installation and full bonding capability using approved adhesives
4. Environmentally responsible product with zero ODP and low GWP
5. Meets non-deleterious materials compliance requirements
6. Robust compressive strength to handle load and pressure demands
7. Compatible with adhesively bonded single ply roofing membranes
8. Efficient area coverage per board for cost-effective projects
9. Premium foam core with 32kg/m³ density ensures reliable performance

Vapour Control Layer

A vapour control layer lapped and sealed should be used below the insulation Board. When using fully adhered systems, board joints should be taped subject to adhesive system being used.

Bonded Boards

The insulation boards are embedded in a layer of bitumen on a 3G type felt to BS EN 13707: 2013 (Flexible sheets for waterproofing. Reinforced bitumen sheets for roof waterproofing that has been adhered to the deck. Unilin recommend that all systems should have mechanical fixings included or be adhered using other suitable adhesive).
