Unilin Safe-R 72.5mm SR/TB-MF Phenolic Insulated Plasterboard

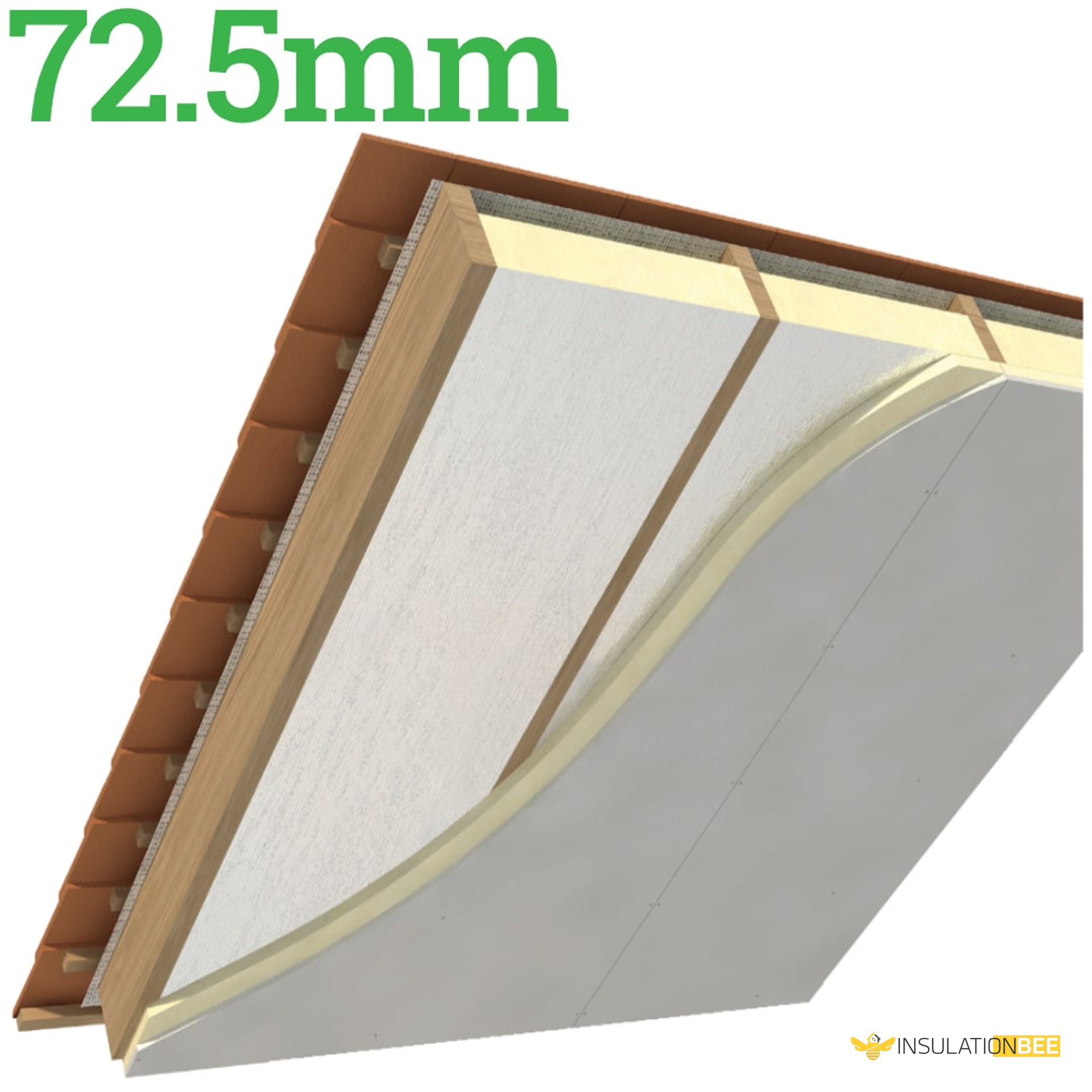

The 72.5mm Unilin Safe-R SR/TB-MF Phenolic Insulated Plasterboard is a high-performance composite panel combining a 60mm phenolic PIR insulation core with dual foil facings. The foil layer bonds securely to 12.5mm tapered edge plasterboard, making it ideal for internal walls, sloped roofs, and ceiling applications. The SR/TB variant is specifically engineered for mechanical fixing methods.

The dual-sided composite foil facing incorporates an integrated vapor control layer that effectively minimizes condensation risk. This 72.5mm SR/TB-MF panel delivers exceptional thermal insulation performance whilst simultaneously providing drylining in one streamlined installation. It's an excellent choice for new builds, refurbishment projects, and renovation work.

Product Details

Brand: Unilin

Model: 72.5mm SR/TB-MF

Thickness: 72.5mm

Dimensions: 2,400mm x 1,200mm x 72.50mm

Width: 1200mm

Length: 2400mm

Board Coverage: 2.88m2

Pack Coverage: 14.40 m2

Pack Quantity: 5

Material: Phenolic core ǀ Gypsum plasterboard

R-Value: 2.86m2K/W

Thermal Conductivity: 0.020 – 0.021 – (0.023 Below 40mm) (W/mK) Phenolic only

Inner facing: Foil facing

Outer facing: Foil facing

Shipping method: Articulated Vehicle ǀ Courier

Applications: Internal Walls ǀ Roofs

BBA Certified: Yes (no. 10/4803)

Vapour Control Layer: Yes, build in

Reaction to fire: Euroclass B s1 d0

Fixing method: Adhesive bonding

Decoration: Skim plaster

ETA Notification: Yes

Features: Integral vapour barrier thermal-liner

Main Highlights

1. Three-in-one composite solution combining insulation, drylining, and vapor control.
2. Integrated vapor control layer for condensation prevention.
3. Rapid and straightforward installation process.
4. Delivers both insulation and drylining performance in a single board.
5. Achieves Euroclass B-s1 d0 fire safety rating.
6. Suitable for new construction, retrofitting, and renovation applications.
7. Minimised board thickness for space efficiency.
8. Compatible with dot and dab fixing techniques.
9. Exceptional low thermal conductivity (lambda) of 0.020 W/mK.
10. Works with various wall substrates.
11. Standard dimensions of 2400mm x 1200mm (8 x 4).
12. Features premium phenolic insulation core technology.
13. Combines insulation, drylining, and vapor barrier in one product.
14. Simple to handle and install on site.

Integral Vapor Control Layer

The composite glass tissue facing on the 72.5mm SR/TB-MF acts as an impermeable gas and vapor barrier, substantially lowering condensation potential. When joints are properly sealed and taped following standard drylining practices, a complete vapor control layer forms across the installation.

Fire Stops

When drylining walls, fire stops must be installed at the top and bottom of each board and around all openings including doors and windows. These fire stops comprise continuous lines of adhesive that prevent fire from spreading behind the insulation. The unbroken adhesive lines also help eliminate thermal bridging, improving overall wall U-Value performance.

Handling, Cutting, and Storage

PIR insulation boards must be stored on a clean, level surface above ground and protected from weather exposure. Polythene wrapping alone does not provide adequate outdoor protection. Take proper care during storage and throughout construction to prevent damage. Always wear appropriate personal protective equipment (PPE) when handling insulation materials.
