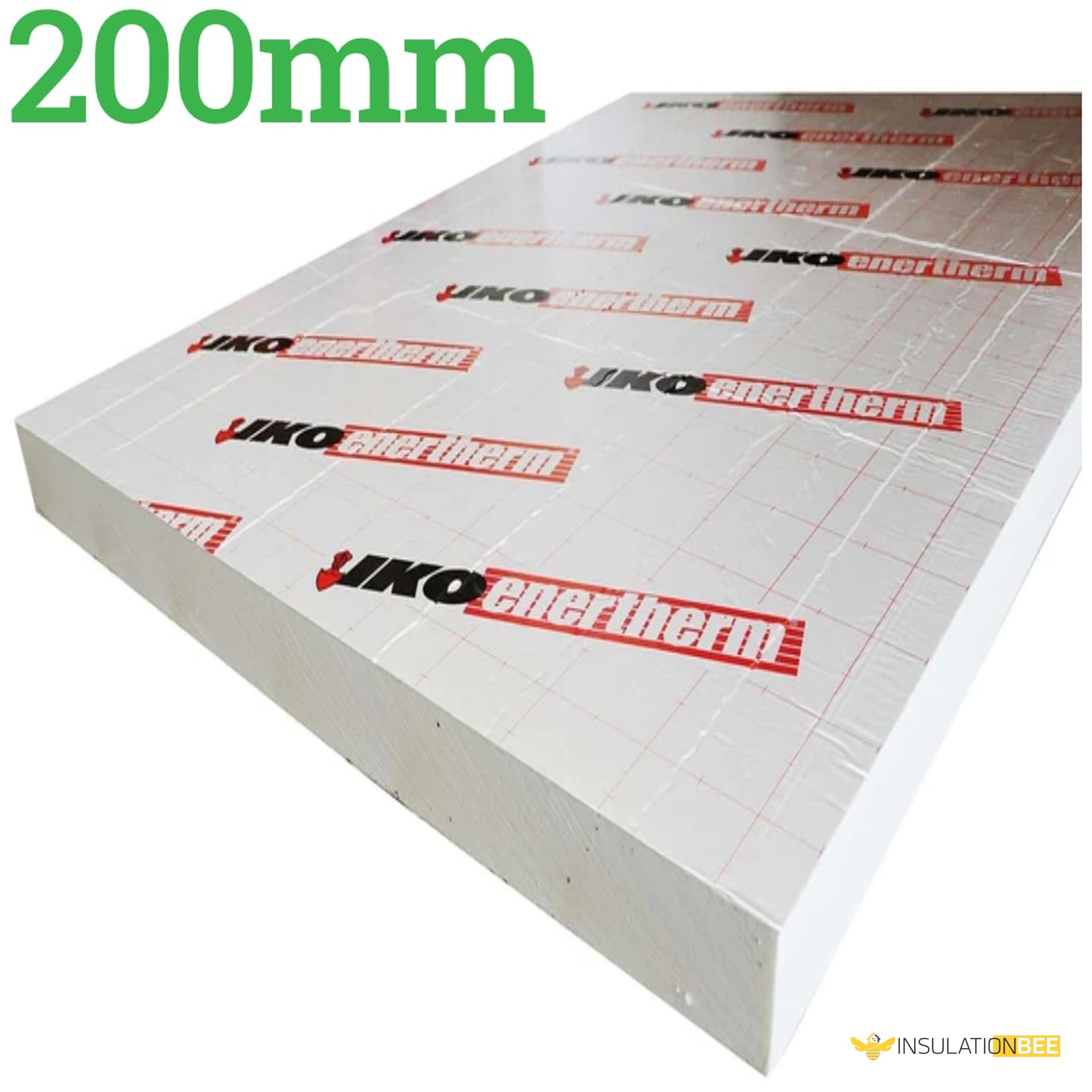

IKO Enertherm ALU PIR Insulation Board 200mm

The 200mm IKO Enertherm ALU PIR Insulation Board delivers reliable thermal performance with a rigid polyisocyanurate foam core that contains no CFCs, HCFCs, or HFCs. Featuring a dual-sided gas-tight aluminium facing made from seven layers of reflective ALU cladding, this 200mm Insulation Board provides exceptional durability. The PIR Board has undergone rigorous testing to confirm its performance against water ingress, structural loads, corrosion, and thermal emissivity across demanding applications.

Properties

Brand: IKO Enertherm®

Thickness: 200mm

Length: 2400mm

Width: 1200mm

Dimensions: 2,400mm x 1,200mm x 200mm

MPN: 30 IKO ALU

Density: 32 kg/m3

Compressive strength at: 10% deformation: 175kPa (17.5ton/m²)

R-Value: 9.05m2K/W

Thermal Conductivity: 0.022 W/mk

Water vapour diffusion:: PIR foam: μ = 60 – ALU facing μ > 100,000

Applications: Roofs, Walls, Floors, Timber & Steel Frame

BBA Certified: Yes, No.15/5283

Features: Multi-functional ALU PIR Insulation

By Project Type: DIY, New Build, Refurbishment

Installation Method: Loose Laid, Mechanically Fixed, Partially Bonded

Material: PIR

Facing: Aluminium composite facing on both sides

Product Colour: Silver

Product Finish: Aluminium Multi Layer Lamination

Sector: Community & Amenity, Domestic, Education, Health, Hotel & Leisure, Industrial, Mixed Use, Offices, Private Housing, Retail, Social Housing, Utilities

Substrate: Concrete, Masonry Structure, Metal, Timber (Plywood-OSB)

Fire Performance: EN 13501-1: Class E | BS 476 – p7 : Class 1

Range Of Applications

1. Rooftop: Flat Roof Insulation for timber, concrete and steel deck.
2. Sarking: pitched roof insulation (type nF with neutral felt).
3. Floor: floor insulation (underfloor heating and concrete floors).
4. Wall: cavity wall insulation.
5. Wrap: outside wall insulation (closed joints).
6. Comfort: loft insulation.
7. Comfort Easy: Loft floor insulation.

This 200mm PIR insulation board suits flat roofs, pitched roofs, cavity walls, internal partitions, inverted roofs, metal roofing systems, and floor applications. The superior thermal performance reduces energy consumption for heating and cooling, helping to lower utility bills. These boards are environmentally responsible, containing no CFC, HCFC or HFC gases, making them safe for the atmosphere.

About

Pairing the 200mm PIR insulation board with Roof Membranes is straightforward, and the boards retain their thermal properties and structural integrity over extended periods thanks to excellent dimensional stability. Resistance to rot and mould growth ensures long-term reliability. The combination of high thermal values and slim profile means reduced overall build thickness, maximising usable space in roofs, floors, and cavities.

Micro Cell Technology

IKO Enertherm boards benefit from proprietary Micro Cell Technology (MCT), created through carefully balanced raw material selection and manufacturing processes. This produces an exceptionally fine foam cell structure.

Shape retention: These insulation boards maintain their form and dimensional stability better than PIR Boards with larger cell structures. This prevents thermal bridging and extends service life without compromising insulation performance.

Moisture resistance: MCT technology delivers very low long-term water absorption (< 0.6%) in 200mm IKO insulation boards compared to standard materials. The PIR boards stay rot and mould-free, maintaining their R-value since water uptake is minimised.

Pressure insulation: 200mm IKO PIR boards withstand significant compression due to their cellular elasticity. MCT technology provides flexible cells that resist rupture and prevent permanent indentation under foot traffic.
