100mm Unilin Safe-R SR/FB Framing Insulation Board

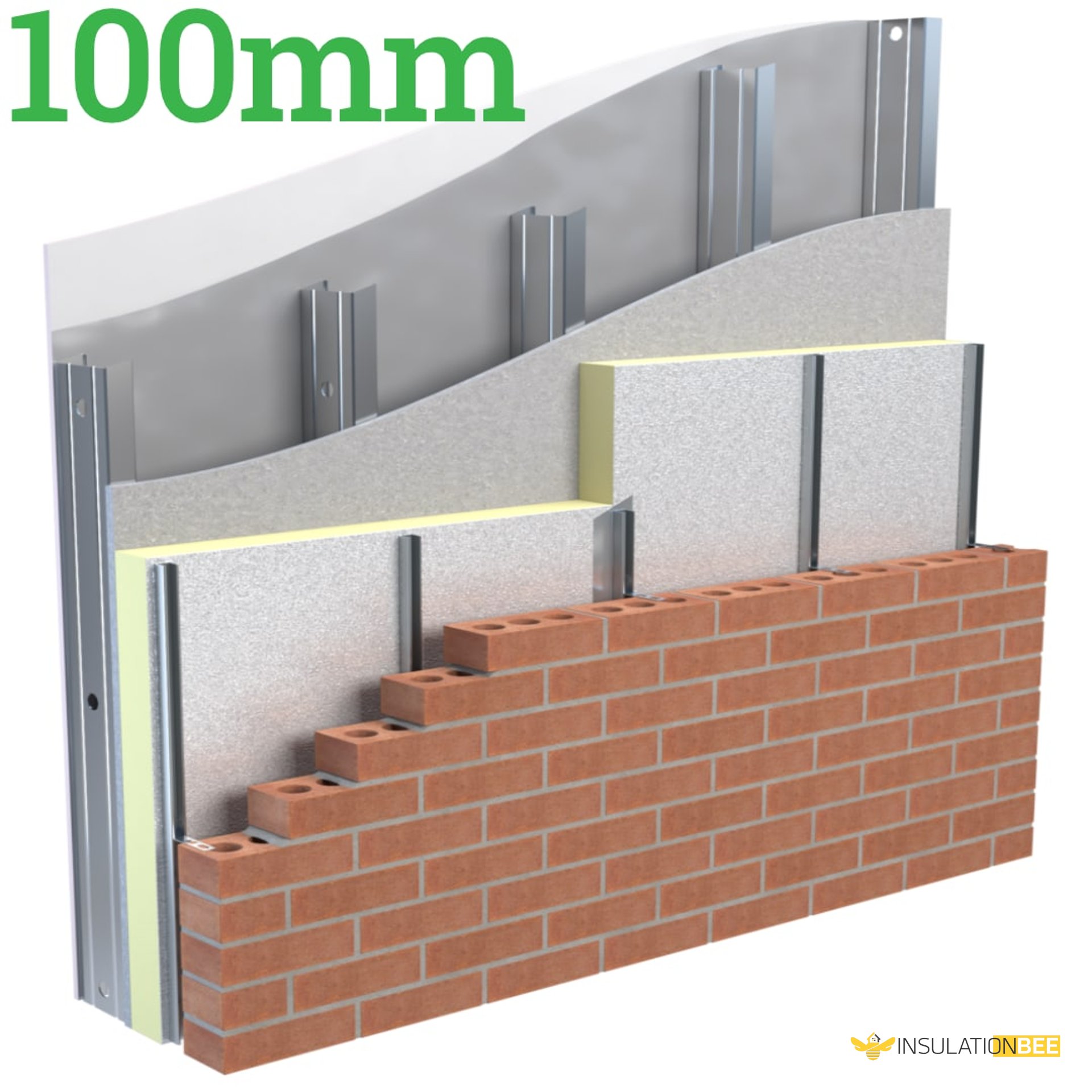

The 100mm Unilin Safe-R SR/FB Framing Insulation Board is purpose-designed for steel and timber frame construction up to 11 metres in height. With a Euroclass C Fire Classification, this board works brilliantly as an insulated sheathing board or between studs. The 100mm SR/FB Framing Insulation Board delivers outstanding U-Values and superior thermal bridging control for reliable building performance.

Product Details

Brand: Unilin®

Model: 100mm SR/FB Framing Board

Thickness: 100mm

Length: 2400mm

Width: 1200mm

Dimensions: 2,400mm x 1,200mm x 100mm

Board Coverage: 2.88m2

Pack Coverage: 11.52m2

Pack Weight: 24kg

Pack Quantity: 4

R-Value: 5.0m2K/W

Thermal Conductivity: 0.021W/mK

Compressive Strength: >100 (kPa)

Type: Phenolic Insulation Board

Profile: Square Edge

Fire Classification: Euroclass C s1 d0

Finish: Low emissivity foil facings

Inner facing: Foil facing

Outer facing: Foil facing

Shipping method: Articulated Vehicle ǀ Courier

Applications: Steel and Timber Frame

BBA Certified: Yes (no. 10/4803)

Vapour Control Layer: Yes, build in

Foil faced: Both sides

Features: Superior Performance Insulation

Benefits

1. Ideal for steel and timber frame systems reaching heights of up to 11 metres.
2. Lower lambda value improves thermal performance and U-Values.
3. Achieves Euroclass C-s1, d0 Fire Classification for enhanced safety.
4. Reduces thermal bridging effectively.

Handling, Cutting, and Storage:

1. Store the Framing Insulation Board on a clean, level, raised surface with protective covering.
2. Polythene wrapping alone does not provide adequate weather protection during storage.
3. Take care to prevent damage during storage and on-site handling throughout construction.
4. Always use appropriate personal protective equipment (PPE) when handling the insulation board.

Certification and Standards:

1. BBA Certification Number: 10/4803.
2. Compliance with BS EN ISO 9001 Quality Management System.
3. Adherence to BS EN ISO 14001 Environmental Management System.
4. Conformance with BS EN 13166 standards.
