120mm Unilin Safe-R SR/FB Framing Board

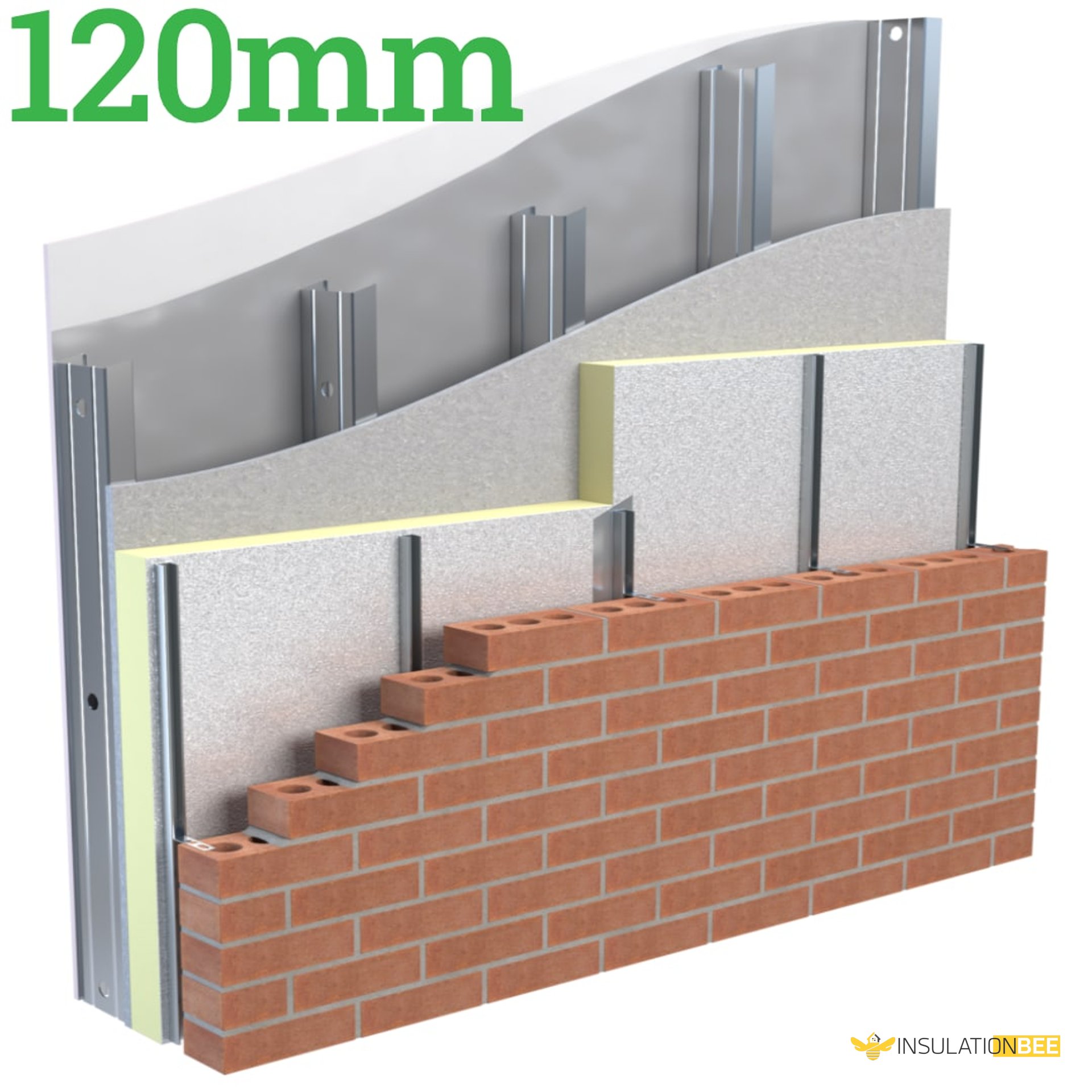

The 120mm Unilin Safe-R SR/FB Framing Insulation Board is purpose-designed for steel and timber frame construction reaching heights of up to 11 metres. With Euroclass C Fire Classification, this product works brilliantly as an insulated sheathing board or between stud applications. The 120mm SR/FB Framing Insulation Board delivers outstanding U-Values and superior thermal bridging control for reliable construction performance.

Product Details

Brand: Unilin®

Model: 120mm SR/FB Framing Board

Thickness: 120mm

Length: 2400mm

Width: 1200mm

Dimensions: 2,400mm x 1,200mm x 120mm

Board Coverage: 2.88m2

Pack Coverage: 8.64m2

Pack Weight: 18kg

Pack Quantity: 4

R-Value: 6.0m2K/W

Thermal Conductivity: 0.021W/mK

Compressive Strength: >100 (kPa)

Type: Phenolic Insulation Board

Profile: Square Edge

Fire Classification: Euroclass C s1 d0

Finish: Low emissivity foil facings

Inner facing: Foil facing

Outer facing: Foil facing

Shipping method: Articulated Vehicle ǀ Courier

Applications: Steel and Timber Frame

BBA Certified: Yes (no. 10/4803)

Vapour Control Layer: Yes, build in

Foil faced: Both sides

Features: Superior Performance Insulation

Benefits

1. Ideal for steel and timber frame systems up to 11 metres in height.
2. Low lambda value improves U-Value performance.
3. Achieves Fire Classification C-s1, d0 for enhanced safety.
4. Reduces thermal bridging effectively.

Handling, Cutting, and Storage:

1. Store this Framing Insulation Board on a flat, clean surface elevated from ground level and protected from the weather.
2. Polythene wrapping alone does not provide adequate protection from outdoor conditions.
3. Take care to prevent damage during storage and on-site handling.
4. Always use appropriate personal protective equipment (PPE) when working with the insulation board.

Certification and Standards:

1. BBA Certification Number: 10/4803.
2. Compliance with BS EN ISO 9001 Quality Management System.
3. Adherence to BS EN ISO 14001 Environmental Management System.
4. Conformance with BS EN 13166 standards.
