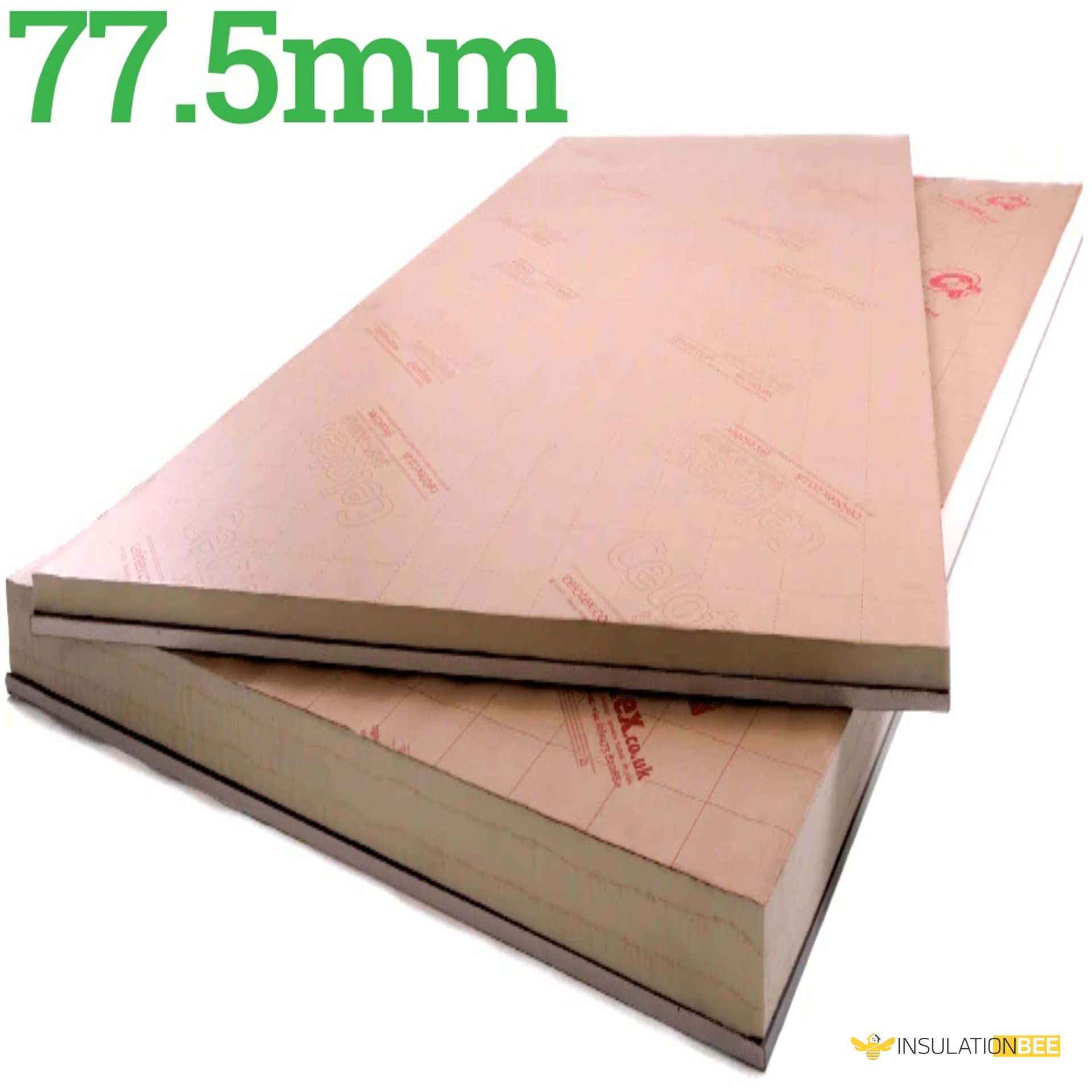

77.5mm Recticel Eurothane PL PIR Insulated Plasterboard

This 77.5mm Recticel Insulated Plasterboard combines rigid polyisocyanurate foam with factory-bonded plasterboard, engineered for both mechanical and dot-and-dab installation methods. Precision-controlled dimensions minimise thermal bridging whilst maintaining consistent performance across applications.

Ideal for internal wall insulation and pitched roof projects, this integrated insulation board and plasterboard solution delivers thermal control and vapour management in a single product.

Key benefits

1. Excellent thermal performance: λ = 0.022 W/mK
2. Three-in-one system: insulation, vapour control layer and plasterboard
3. Flexible installation options with multiple fixing methods

Properties

Model: 77.5mm Recticel Eurothane PL

Thickness: 77.5mm

Dimensions: 2,400mm x 1,200mm x 77.5mm (66mm PIR bonded to 12.5mm plasterboard)

Length: 2400mm

Width: 1200mm

Weight: Approximately 10.76 kg/m² at 82.5mm thickness (70mm insulation plus 12.5mm plasterboard)

Compressive Strength: >>120kPa

Material: Rigid polyisocyanurate PIR foam core with gas-diffusion-tight multilayer foil facing on both sides, post-laminated with plasterboard on one side

Thermal Conductivity: Insulation 0.022 W/mK; Plasterboard 0.19 W/mK

Thermal Resistance: 3 m²K/W

Core Density: ± 30 kg/m³

Water Vapour Diffusion Coefficient: 50-100µ

Fire Classification: Euroclass B-s1,d0 (EN 13501-1: 2018)

Coverage: 2.88m²

Facing: Gas-diffusion-tight multilayer foil on both sides with post-laminated 12.5mm plasterboard on one side

Finish: Straight edges on PIR; tapered edge plasterboard on long sides

Fire Performance: Euroclass B-s1, d0

Application: Designed for internal wall insulation and pitched roof installations

Commercial Or Domestic Use: Both

Performance and installation

Recticel's 77.5mm solution delivers superior thermal efficiency whilst maintaining ease of installation. The lightweight construction simplifies handling and cutting, allowing rapid site deployment without compromising performance. Thinner overall wall or roof build-ups preserve valuable internal space whilst achieving robust thermal control and maintaining stable indoor temperatures.

The integrated plasterboard facing eliminates separate finishing steps, reducing labour time and material costs. Straightforward cutting capabilities enable precise fitting to project specifications, making this product suitable for both straightforward and complex installation scenarios.

About Recticel

Recticel Insulation develops high-performance PIR insulation products through continuous innovation and technical advancement. The company combines rigorous engineering with sustainable manufacturing practices to deliver insulation boards that exceed thermal performance standards and support long-term building efficiency.

Info

Explore our full Recticel range and filter by thickness or coverage using the left-hand navigation. For project suitability advice or bulk quotations, contact us by phone on +4402038839057, email sales@insulationbee, or use Live Chat for competitive UK insulation pricing.
