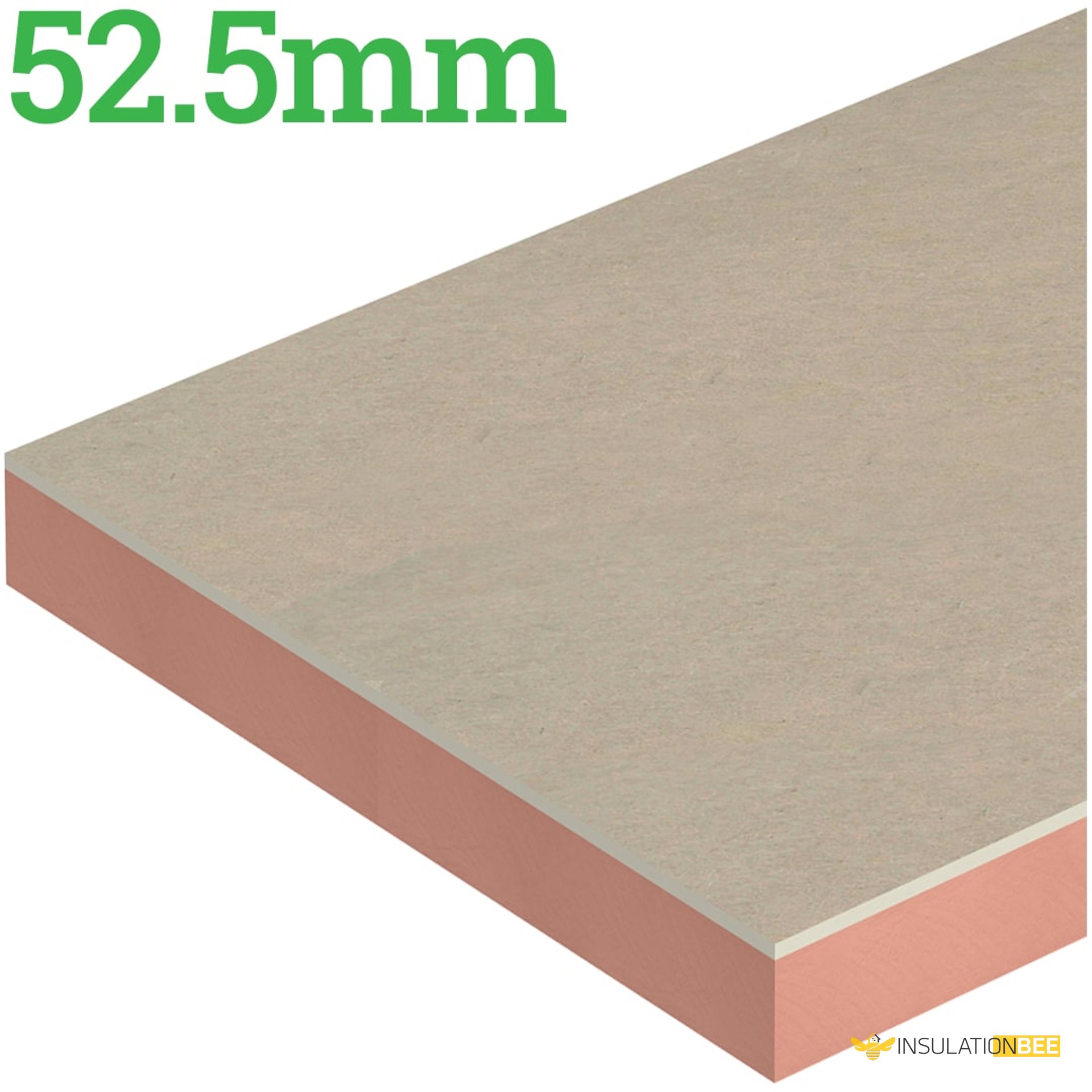

52.5mm Recticel Eurothane PL PIR Insulated Plasterboard

This 52.5mm Recticel Insulated Plasterboard provides a versatile solution for both mechanical and dot-and-dab installation methods. Precision-controlled dimensions work to reduce thermal bridging, whilst factory-bonded construction guarantees consistent performance and reliable adhesion between all layers.

Combining insulation with plasterboard in a single product, this 52.5mm board suits internal wall insulation and pitched roof projects effectively.

Key benefits

1. Strong thermal performance: λ = 0.022 W/mK
2. Three-in-one product: insulation board, vapour control layer and plasterboard
3. Flexible installation options available

Properties

Model: 52.5mm Recticel Eurothane PL

Thickness: 52.5mm

Pack Quantity: 1 sheet

Dimensions: 2,400mm x 1,200mm x 52.5mm ( 40mm PIR bonded to 12.5mm Plasterboard)

Length: 2400mm

Width: 1200mm

Weight : Eco-Liner has an approximate weight of 10.76 kg/m2 at a thickness of 82.5 mm (insulation thickness 70 mm plus 12.5 mm plasterboard)

Compressive Strength: >>120kPa

Material: Its core consists of rigid polyisocyanurate PIR foam. The board is faced with a gas diffusion tight multilayer foil on both sides and post laminated with a plasterboard on one side.

Thermal Conductivity: Insulation: 0.022 W/mK & Plasterboard: 0.19 W/mK

Thermal Resistance: 1.85 m2K/W

Core Density: ± 30 kg/m³

Water vapour diffusion coefficient: 50-100µ

Fire Classification: European Classification (Euroclass) B-s1,d0 when classified to EN 13501-1: 2018.

Coverage: 2.88m2

Facing: Gas diffusion tight multilayer foil on both sides and a post laminated plasterboard (12,5mm) on one side.

Finish: Straight edges PIR / Tapered edge plasterboard on the long sides

Fire Performance: Euroclass B-s1, d0

Application: 52.5mm Recticel PL is used for internal wall insulation and pitched roof applications.

Commercial Or Domestic Use: Both

Feel good inside

Recticel 52.5mm Insulation delivers comprehensive advantages for residential and commercial spaces, maintaining stable internal temperatures whilst enabling rapid installation. The lightweight composition and straightforward cutting properties streamline on-site work and reduce labour time.

Our 52.5mm Recticel Insulated Plasterboards are straightforward to install and manage, thanks to their light weight and simple handling characteristics. These boards cut easily to accommodate various dimensions, enabling flexible adaptation for diverse project specifications.

Featuring excellent insulation values, these boards allow thinner insulation layers to be installed, preserving valuable internal space. Select Recticel PL Insulation for dependable thermal comfort and performance in any residential or commercial application.

About

Recticel Insulation represents more than a manufacturer of premium PIR Insulation products. The company functions as a collective of specialists and industry pioneers, committed to advancing insulation solutions that exceed thermal performance standards and practical requirements.

Our specialists focus on developing innovative approaches and cutting-edge technologies across the sector, continuously seeking enhancements to product performance and functionality. Choose Recticel Insulation Boards for superior quality and commitment to environmental responsibility.

Info

Explore our Recticel range and refine selections by thickness or coverage using the left-hand filters. For guidance on product suitability for your specific project or bulk pricing enquiries, contact us via phone on +4402038839057 , email sales@insulationbee or Live Chat - Lowest UK Insulation Prices. Recticel Insulation represents more than a manufacturer of premium PIR products. The company functions as a collective of specialists and industry pioneers, committed to advancing insulation solutions that exceed thermal performance standards and practical requirements.
