Kay-Metzeler 40mm EPS70 Polystyrene Floor Insulation

The Kay-Metzeler Kay-Cel 40mm EPS 70 Expanded Polystyrene Floor Insulation Board delivers outstanding thermal performance for residential and commercial applications. This cost-effective solution is completely free from CFCs and HCFCs, making it an environmentally responsible choice for your building project.

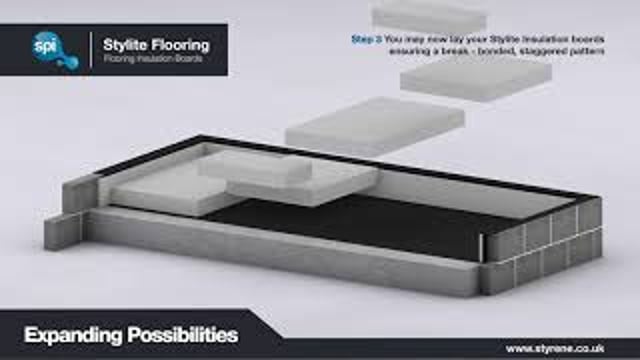

Designed for installation over concrete slabs and precast concrete floors in domestic ground-floor construction, these 40mm sheets work perfectly when topped with chipboard to satisfy Building Regulations U-value standards.

The EPS 70 boards measure 2400mm x 1200mm x 40mm and feature exceptional moisture resistance, rot-proofing, and protection against bacteria, mould, and fungal growth. Non-toxic, non-irritant, and completely odourless, they integrate seamlessly with virtually all standard building materials.

Kay-Metzeler Kay-Cel Polystyrene comes in multiple performance grades, from EPS 70 and EPS 100 through to EPS 500, plus Kay-Cel Super-Plus options. Both EPS 70 and EPS 100 deliver premium 40mm expanded polystyrene performance with excellent thermal insulation capabilities.

Product specification

• Brand: Kay-Metzeler™
• Model: 40mm EPS 70
• Thickness: 40mm
• Length: 2400mm
• Width: 1200mm
• Dimensions: 2,400mm x 1,200mm x 40mm
• Board Coverage: 2.88m2
• Pack Coverage: 25.92m2
• R-Value: 1.08m2K/W
• Thermal Conductivity: 0.037W/mK
• Compressive Strength: 70kPa
• Density: 15kg/m3
• Material: Expanded Polystyrene - EPS
• Profile: Square Edge
• Colour: White with grey dots
• Building Regulations: Compliant
• Shipping method: Articulated Vehicle ǀ Courier
• Applications: Flooring ǀ Walls ǀ Construction
• Type: EPS Insulation Board
• Features: Versatile EPS ǀ Polystyrene Board
• Manufacturer: Kay-Metzeler EPS 70®

Application

• Thermal insulation for areas subject to low mechanical loads.
• Insulation of walls and ceilings from below in Joint-less Warming Systems (BSO), such as those using light-wet methods.
• Insulation for walls with cladding, ventilated by air gaps.
• Thermal insulation of crowns under plaster, as well as lintels and door frames.
• Insulation for ceilings made of reinforced concrete, serving as lost formwork.
• Insulation for steep roofs, placed under the supporting structure.
• Foamed 40mm polystyrene boards EPS70 should not be used in direct contact with substances that degrade polystyrene, such as organic solvents (e.g., propane, benzene, turpentine).

Characteristics

• Expanded polystyrene (EPS) resists moisture effectively and works well alongside most building materials, except those containing solvents.
• 40mm EPS withstands rot, bacteria, mould, and fungal attack, whilst remaining non-toxic, non-irritating, and odourless.
• 40mm EPS contains no CFCs or HCFCs; however, it is combustible when tested to BS476: Part 4 and will ignite if exposed to flame.
• Store the material in a covered location, shielded from direct sunlight and ground moisture exposure.

Certification

40mm EPS70 foamed polystyrene boards are produced to Standard PN-EN 13163:2009.
