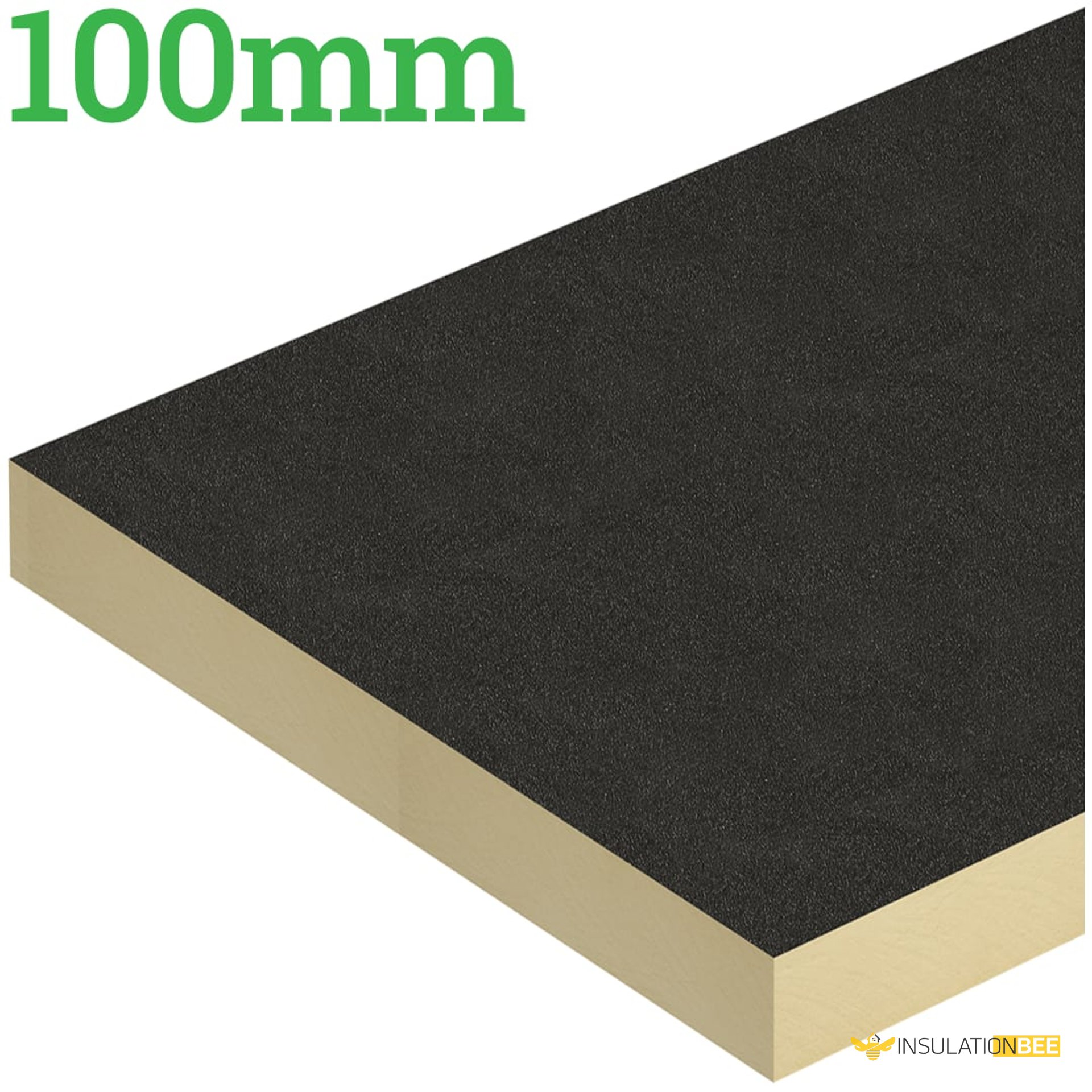

100mm Kingspan Thermaroof TR27 Flat Roof Insulation

100mm Kingspan Thermaroof TR27 delivers premium performance as a flat roof insulation product, engineered for roofs featuring fully adhered single-ply membranes, partially bonded built-up felt, mastic asphalt, or cold liquid applied waterproofing systems. This advanced rigid polyisocyanurate board integrates seamlessly with numerous green roof systems and provides straightforward installation characteristics. Suitable for both new builds and retrofit applications, this 100mm board measures 1200mm by 1200mm.

Product Specification

Brand: Kingspan

Model: 100mm Thermaroof TR27

Thickness: 100mm

Length: 1200mm

Width: 1200mm

Weight: 4.3kg/m2

Pack Quantity: 4 sheets

Board Coverage: 1.44m2

**Pack Coverage: ** 5.76m2

Dimensions: 1,200mm x 1,200mm x 100mm

Colour: Light Yellow | Brownish

Compressive Strength: 150kPa

Density: 32kg/m3

Profile: Square edge

R-Value: 4.0 m2K/W

Has a thermal conductivity of: 0.027 W/mK (insulant thickness < 80 mm) 0.025 W/mK (insulant thickness 80 - 119 mm) 0.024 W/mK (insulant thickness ≥ 120 mm)

Finish: Faced on both sides with a coated glass tissue, autohesively bonded to the insulation core during manufacture.

Insulation Material: A high performance rigid thermoset polyisocyanurate (PIR insulation).

Application Temperature: from +5 °C to +25 °C

Shipping method: Articulated Vehicle ǀ Courier

Applications: Insulation for flat roofs waterproofed with fully adhered single-ply, partially bonded built-up felt, mastic asphalt and cold liquid applied waterproofing.

BBA Certified: Yes

Fire Reaction: Under System 4 AVCP, 100mm Thermaroof TR27 has a Euroclass rating of F.

Compressive Strength: typically exceeds 150 kPa at 10% compression.

Features: High performance flat roof insulation board

Product Highlights:

1. Delivers outstanding thermal performance, positioning itself among the most efficient insulation solutions available for flat roofs.
2. Fully compatible with single-ply non-bituminous membranes when bonded using solvent-based adhesive systems, ensuring reliable performance.
3. Works effectively with bitumen-based and mastic asphalt waterproofing systems, delivering installation flexibility across multiple approaches.
4. Integrates with most green roof systems, enabling sustainable roofing design options.
5. FM Approved to FM 4470 standard, meeting stringent industry compliance requirements.
6. Tapered variants are available to support proper roof drainage and slope creation.
7. Straightforward handling and installation characteristics reduce labour time and project duration.
8. Pre-bonded variants (TR27PB) are obtainable, further streamlining the installation process. Contact our roofing insulation specialists for detailed guidance.

Applications

100mm Kingspan TR27 accommodates multiple installation configurations to match different project requirements. Typical applications include:

1. Dense Concrete Deck with Suspended Ceiling: Appropriate for dense concrete structural decks paired with suspended ceiling systems.
2. Timber Deck with Plasterboard Ceiling: Effective for timber deck constructions finished with plasterboard ceilings.
3. Metal Deck with No Ceiling: Engineered for metal deck applications where ceiling systems are not required.
4. Extensive Green Roof Covering - Metal Deck with No Ceiling: Purpose-designed for extensive green roof installations on metal decks without ceiling systems.
5. Semi-intensive Green Roof Covering - Dense Concrete Deck with Suspended Ceiling: Tailored for semi-intensive green roof systems combining dense concrete decks and suspended ceilings.
6. These varied configurations provide adaptability across diverse structural types and architectural specifications.
