80mm Unilin Xtroliner XO/UF PIR Floor Insulation

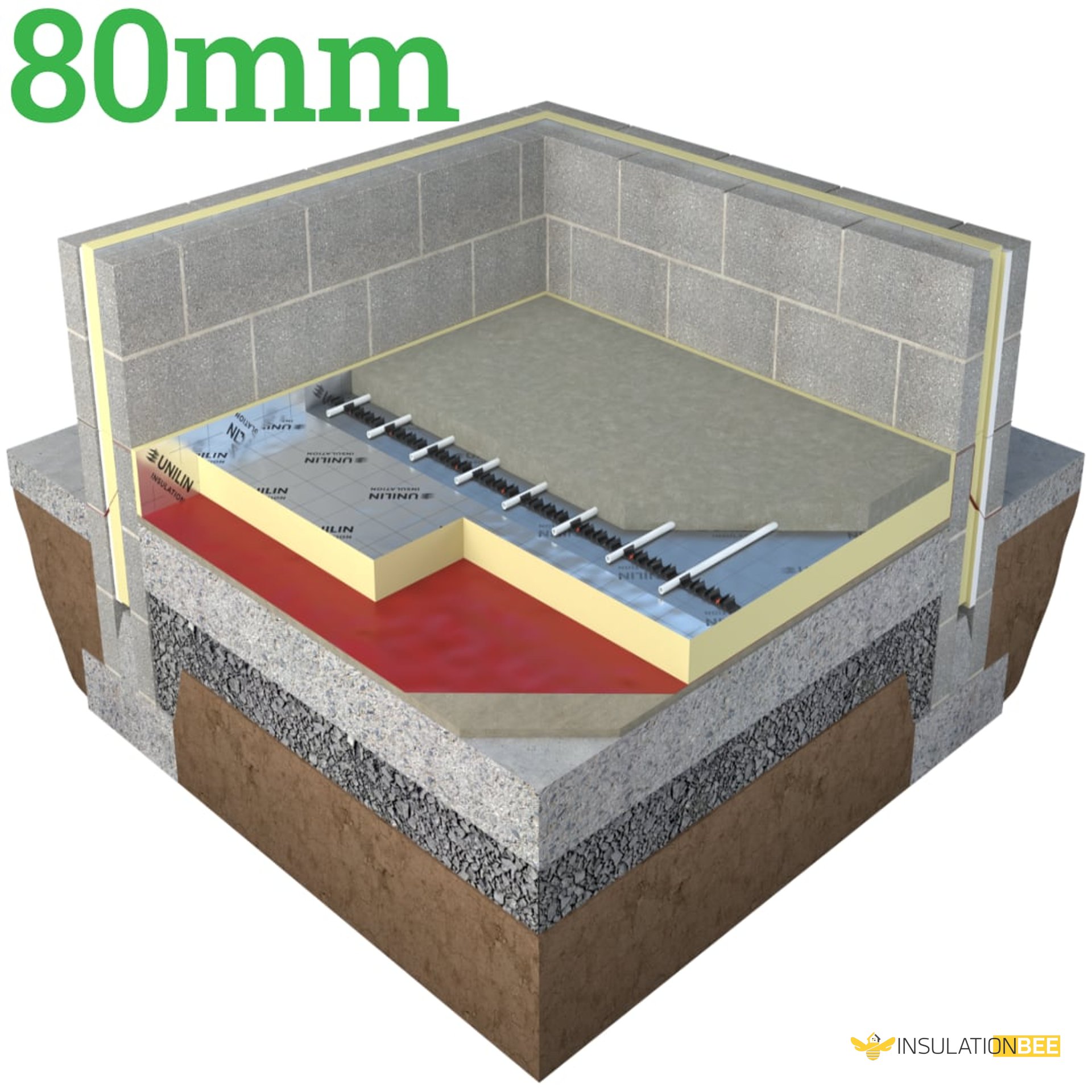

80mm Unilin Xtroliner XO/UF PIR Floor Insulation Board delivers outstanding thermal performance for underfloor applications. With a thermal conductivity of just 0.021 W/mK, this floor insulation solution effectively reduces heat loss through the floor structure.

Installing 80mm XO/UF Underfloor insulation significantly improves U-Values in both new and existing floor systems. The product combines lightweight construction with easy installation, whilst maintaining excellent compressive strength and minimal thermal conductivity. This makes it an ideal choice for meeting floor insulation requirements.

Product Details

Brand: Unilin

Model: 80mm XO/UF Underfloor

Thickness: 80mm

Length: 2400mm

Width: 1200mm

Pack Coverage: 11.52m2

Dimensions: 2,400mm x 1,200mm x 80mm

Compressive Strength: 150 (kPa)

Material: PIR Insulation (polyisocyanurate)

Inner facing: Foil Facing

Outer facing: Foil Facing

Finish: Robust textured foil

Profile: Square Edge

R-Value: 3.80m2K/W

Thermal Conductivity: 0.021W/mK

Fire Classification: Euroclass C-s2, d0

Applications: Floors ǀ Underfloor Heating

Vapour Control Layer: Yes

Features: Improved Performance ǀ Durable

Manufacturer: Unilin Xtroliner®

Key Points

1. High Compressive Strength
2. Suitable as Underfloor Heating Insulation
3. Perimeter Strips for Robust Detailing
4. Reduced Insulation Thickness
5. Robust Textured Foil
6. 80mm underfloor pir insulation board

Fabric Energy Efficiency is based on 3 main principles:

1. U-Values
2. Thermal Bridging
3. Air tightness

What is Thermal Bridging?

Thermal Bridging occurs in localised areas where insulation levels drop significantly compared to the surrounding structure. These instances can be categorised as 'Repeating,' 'Random,' or 'Non-Repeating.'

How is Thermal Bridging quantified?

Thermal bridges are measured using linear thermal transmittance, known as PSI (Ψ), measured in W/mK. SAP is the software tool used to calculate a building's energy performance rating. Within this system, thermal bridging effects at junctions are represented by a 'Y-Value.'

Note

80mm Unilin XO/UF offers one of the most effective floor insulation solutions available. It provides the strength and thermal performance needed to achieve the high-performance U-Values required by Building Regulations.
