80mm Unilin XT/CW Partial Fill Cavity Insulation

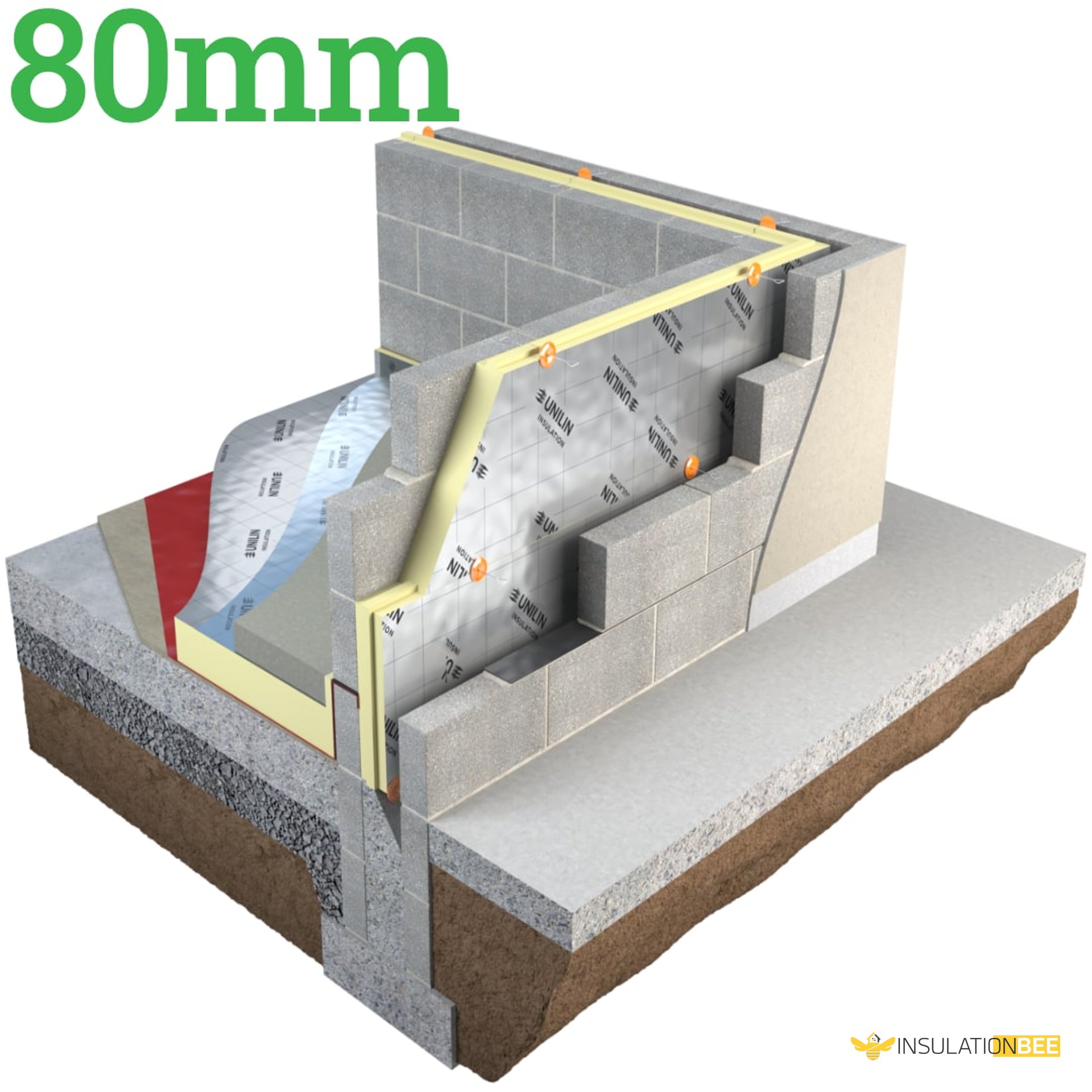

The 80mm Unilin XT/CW Partial Fill Cavity Wall (T&G) system features engineered tongue and grooved joints with pre-formed corners. This construction delivers consistent insulation coverage and reduces thermal bridging effectively.

Engineered for conventional masonry walls, the 80mm Unilin XT/CW Cavity Wall (T&G) system meets rigorous thermal performance requirements. It delivers superior thermal efficiency whilst preserving a residual cavity, offering robust defence against weather-driven moisture penetration.

Our XT/CW Is avaiable in Square Edge @ Tongue and Grooved versions. The 80mm Unilin XT/CW was previous known as 80mm Xtratherm XT/CW.

Product Specification

Brand: Unilin / Xtratherm®

Thickness: 80mm

Model: 80mm XT/CW Cavity Wall Insulation Tongue & Groove

Weight: 11.67kg

Dimensions: 1,200mm x 450mm x 80mm

Density: 30Kg/m3

Length: 1200mm

Width: 450mm

Board Coverage: 0.54 m²

Pack Coverage: 2.7 m²

Material: Polyisocyanurate (PIR)

Profile: Square Edge

R-Value: 3.18 m2K/W

Thermal Conductivity: 0.022 W/mk

Vapour Resistivity: 100 MNs/gm

Surface Spread of Flame: Class 1

Compressive Strength: >120kPa

Applications: Cavities ǀ Masonry Walls

Inner facing: Foil facing

Outer facing: Foil facing

BBA Certified: Yes (No. 08/4613)

Features: Lightweight ǀ Easy to handle and install

Important Features From Our 80mm XT/CW Partial Fill:

1. Robust tongue and groove jointing for secure assembly.
2. Corner panels and cavity closers reduce thermal bridging.
3. Preserves a clear cavity for maximum performance.
4. No exposure limitations.
5. Fitted with low emissivity foil facings for improved Cavity insulation.
