75mm Unilin SR/CW Phenolic Partial Fill Cavity Board

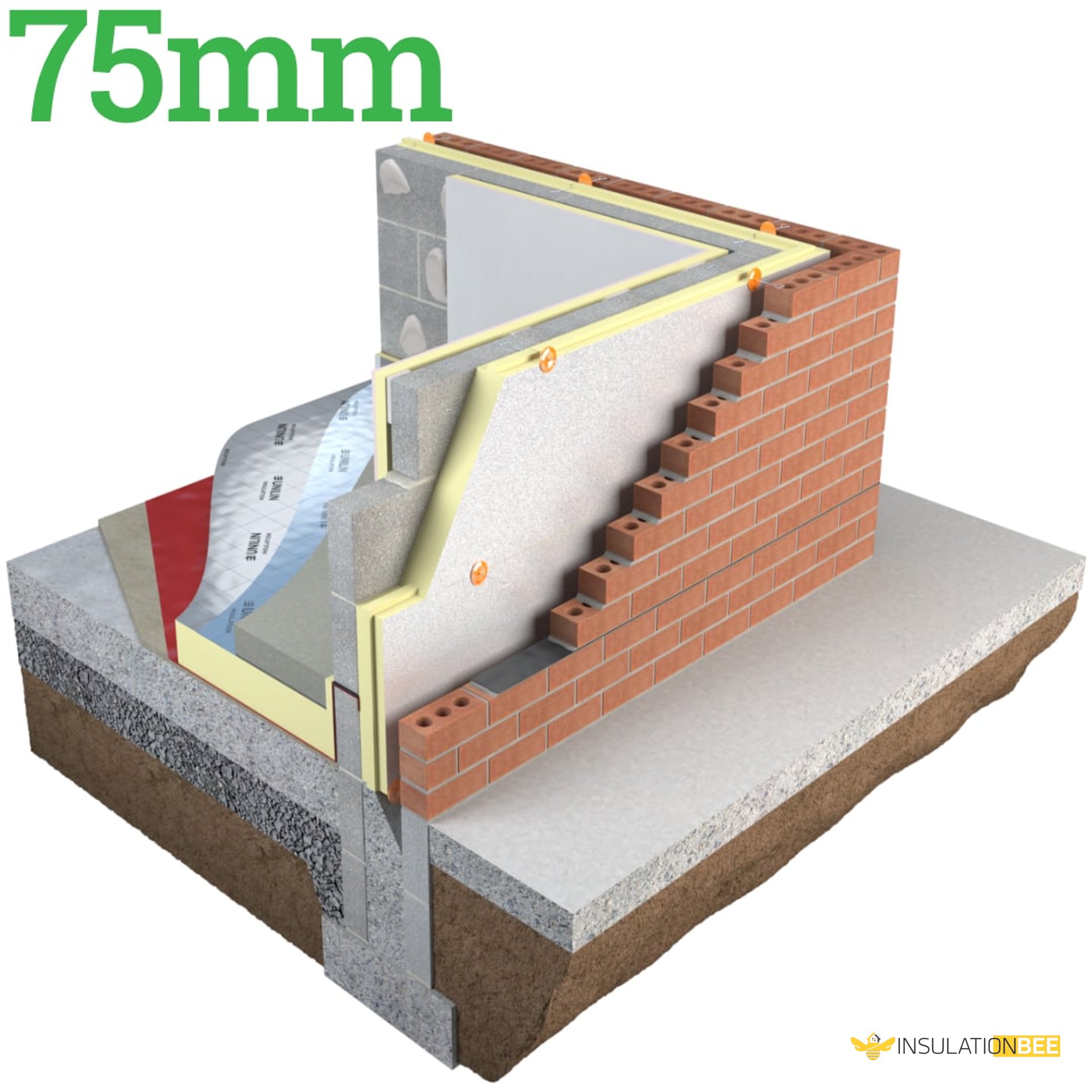

75mm Unilin Safe-R SR/CW Phenolic Partial Fill Cavity Insulation Board works brilliantly with traditional masonry walls, delivering excellent U-Values while keeping a protective air gap that shields against wind-driven rain.

Product Details

Brand: Unilin

Model: 75mm SR/CW Cavity Wall Insulation

Thickness: 75mm

Length: 1200mm

Width: 450mm

Pack Quantity: 4

Board Coverage: 0.54m2

Pack Coverage: 2.16m2

Pack Weight: 8kg

Dimensions: 1,200mm x 450mm x 75mm

Compressive Strength: >100 (kPa)

Material: Phenolic resins

Profile: Square Edge

R-Value: 3.55m2K/W

Thermal Conductivity: 0.021W/mK

Fire Classification: Euroclass D s1 d0

Finish: Low emissivity foil facings

Inner facing: Foil facing

Outer facing: Foil facing

Shipping method: Articulated Vehicle ǀ Courier

Applications: Traditional masonry walls

BBA Certified: Yes (no. 10/4803)

Vapour Control Layer: Yes, build in

Features: BRE Green Guide A+ Rated

About

This 75mm SR/CW Phenolic Partial Fill Insulation Board is an excellent option for meeting building regulation U-Values whilst maintaining a protective air space against wind-driven rain. Partial fill masonry walls remain the standard approach in traditional construction, and this 75mm SR/CW phenolic insulation delivers a practical solution when achieving better U-Values matters.

The outstanding performance-to-thickness balance of this 75mm SR/CW cavity wall insulation makes it easy to reach strong U-Values in period properties without adding excessive bulk to the wall structure. Using 75mm SR/CW means you can keep that essential air gap, which acts as a reliable defence against moisture seeping through.

Advantages

1. Phenolic insulation technology
2. Maintains a protective air cavity
3. Resists wind-driven rain penetration
4. Features low thermal conductivity for superior U-Values
5. 75mm partial fill insulation board

Handling, Cutting, and Storage:

1. Cavity insulation should be placed on a flat, clean surface elevated from ground level and kept under protective covering at all times.
2. The polythene wrapping provides limited protection and should not be relied upon as the sole weather defence.
3. Take care to prevent damage during both storage and on-site installation.
4. Always use suitable personal protective equipment (PPE) when working with insulation board.

Certification and Standards:

1. BBA Certification Number: 10/4803.
2. Compliance with BS EN ISO 9001 Quality Management System.
3. Adherence to BS EN ISO 14001 Environmental Management System.
4. Conformance with BS EN 13166 standards.
