Unilin Safe-R 100mm SR/CW Phenolic Cavity Insulation

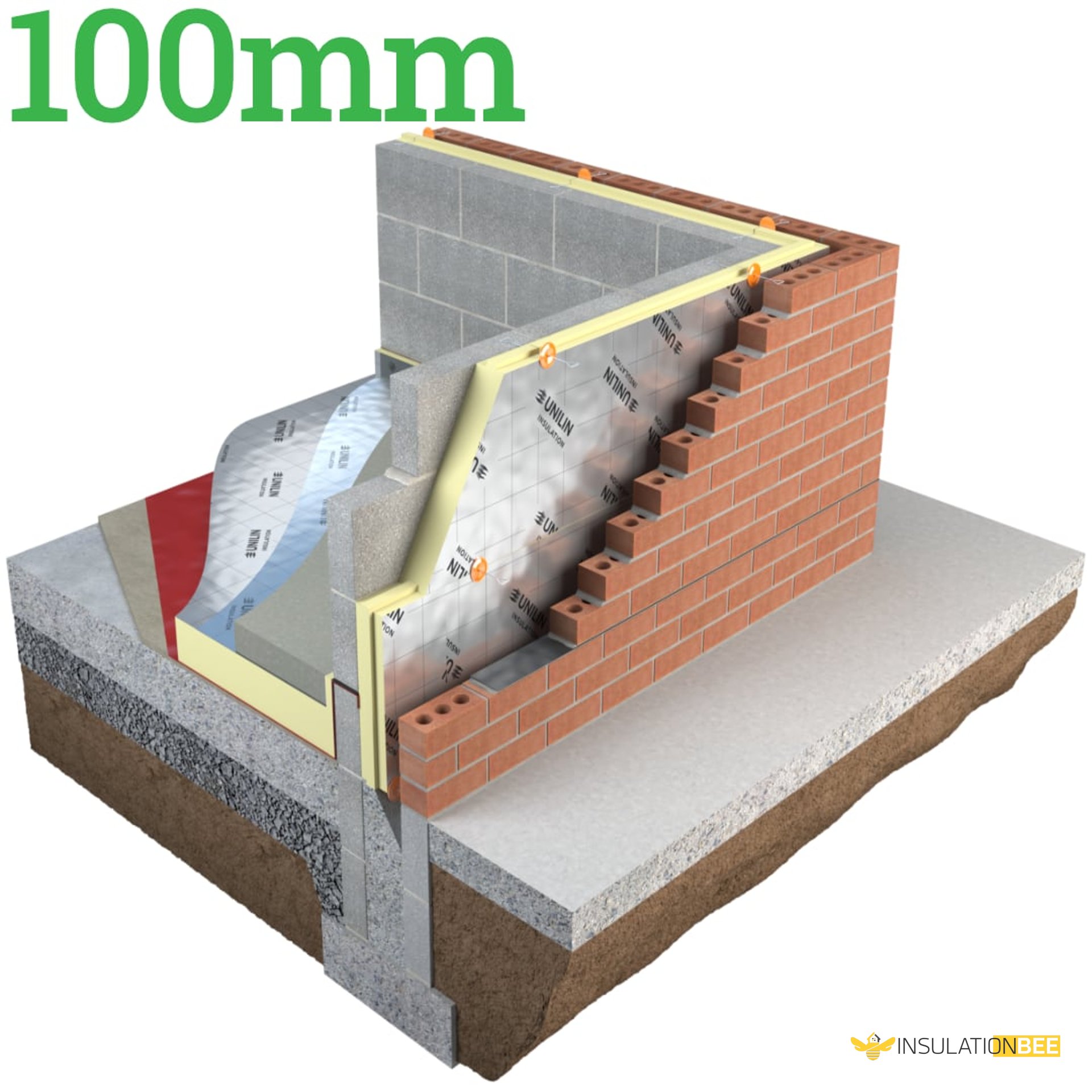

100mm Unilin Safe-R SR/CW Phenolic Partial Fill Cavity Insulation Board works brilliantly with traditional masonry walls, delivering excellent U-Values whilst keeping a residual cavity intact. This gap provides crucial protection from wind-driven rain.

Product Details

Brand: Unilin

Model: 100mm SR/CW Cavity Wall Insulation

Thickness: 100mm

Length: 1200mm

Width: 450mm

Pack Quantity: 4

Board Coverage: 0.54m2

Pack Coverage: 2.16m2

Pack Weight: 8kg

Dimensions: 1,200mm x 450mm x 100mm

Compressive Strength: >100 (kPa)

Material: Phenolic resins

Profile: Square Edge

R-Value: 5.0m2K/W

Thermal Conductivity: 0.021W/mK

Fire Classification: Euroclass D s1 d0

Finish: Low emissivity foil facings

Inner facing: Foil facing

Outer facing: Foil facing

Shipping method: Articulated Vehicle ǀ Courier

Applications: Traditional masonry walls

BBA Certified: Yes (no. 10/4803)

Vapour Control Layer: Yes, build in

Features: BRE Green Guide A+ Rated

About

This 100mm Unilin SR/CW Phenolic Partial Fill Insulation Board is the go-to option for meeting building regulation U-Values whilst maintaining a protective residual cavity against wind-driven rain. Partial fill masonry walls remain the standard construction approach for period properties, and this 100mm SR/CW phenolic insulation delivers an effective answer when you need improved U-Values.

The outstanding performance-to-thickness balance of 100mm SR/CW cavity wall insulation makes it easy to reach impressive U-Values in traditional buildings without making walls substantially thicker. Using 100mm SR/CW lets you keep the residual cavity, which acts as a reliable defence against moisture ingress.

Advantages

1. Phenolic insulation technology
2. Maintains a clear cavity space
3. Shields against wind-driven rain
4. Low lambda values for superior U-Values
5. 100mm partial fill insulation board

Handling, Cutting, and Storage:

1. Store this Cavity insulation on a clean, flat surface raised from ground level, and always keep it under protective cover.
2. Polythene wrapping alone won't protect the insulation from weather exposure.
3. Take care to prevent damage during storage and on site throughout your build.
4. Always use proper personal protective equipment (PPE) when working with insulation board.

Certification and Standards:

1. BBA Certification Number: 10/4803.
2. Compliance with BS EN ISO 9001 Quality Management System.
3. Adherence to BS EN ISO 14001 Environmental Management System.
4. Conformance with BS EN 13166 standards.
