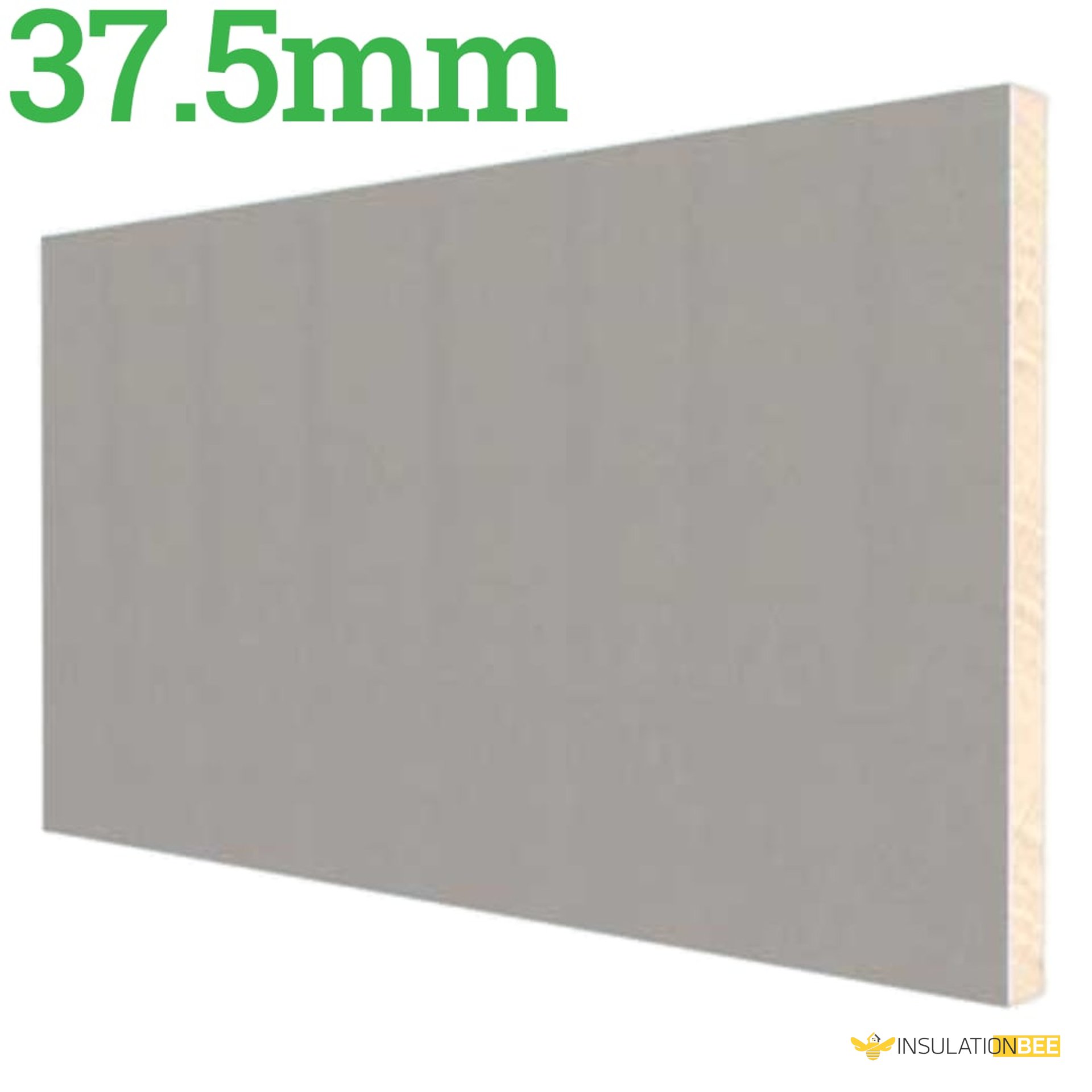

EcoTherm Eco-Liner 37.5mm PIR Insulated Plasterboard

37.5mm Eco-Liner Insulated Plasterboard combines insulation and wall finish in a single product, engineered for both mechanically fixed and adhesively bonded drylining applications. The rigid polyisocyanurate core delivers exceptional thermal performance with a conductivity rating of 0.022 W/mK, making it an efficient choice for internal walls and pitched roofs.

Properties

Model: 37.5mm EcoTherm Eco-Liner

Thickness: 37.5mm

Pack Quantity: 1 sheet

Dimensions: 2,400mm x 1,200mm x 37.5mm ( 25mm PIR bonded to 12.5mm Plasterboard)

Length: 2400mm

Width: 1200mm

Weight : Eco-Liner has an approximate weight of 10.76 kg/m2 at a thickness of 82.5 mm (insulation thickness 70 mm plus 12.5 mm plasterboard)

Compressive Strength: >>140kPa

Material: Eco-Liner is a high performance rigid thermoset polyisocyanurate PIR insulation.

Thermal Conductivity: Insulation: 0.022 W/mK & Plasterboard: 0.19 W/mK

Thermal Resistance: 1.20 m2K/W

Core Density: 28kg/m3

Fire Classification: European Classification (Euroclass) B-s1,d0 when classified to EN 13501-1: 2018.

Coverage: 2.88m2

Surface: Composite kraft paper facing adhered to 12.5mm or 9.5mm*plasterboard

Facing: 37.5mm Ecotherm has a bilaminate foil/kraft paper facing on the outer, bonded to a 12.5 mm tapered edge gypsum plasterboard on the inner facing.

Finish: Kraft facing ǀ Composite foil

Core water vapour resistivity: 2743 x 1200

Edge: Butt

Fire Performance: BS 476-7 / Class 1

Application: Eco-Liner 37.5mm insulated plasterboard is internal wall insulation for solid, cavity or timber frame walls within new and existing properties. Eco-Liner is also an ideal insulation product for pitched roofs.

highlights

Key features of Eco-Liner include a dual-purpose system delivering both insulation and drylining in a single installation, a high-performance rigid polyisocyanurate 25mm PIR insulation Board core with a tapered edge 12.5mm gypsum plasterboard, compatibility with room-in-the-roof applications, walls, and cold flat roofs, and outstanding thermal performance with a low conductivity of 0.022 W/mK.

Fire Performance

37.5mm Ecotherm achieves a European Classification (Euroclass) of B-s1,d0 when classified according to EN 13501-1:2018, the standard for fire classification of construction products and building elements based on reaction to fire tests.

Thermal Performance

The thermal conductivity (lambda/λ - value) of Eco-Liner's 37.5mm insulation core is 0.022 W/mK, whilst the 12.5 mm gypsum plasterboard component achieves a thermal conductivity of 0.19 W/mK.

Durability

When properly installed, 37.5mm Ecotherm Eco-Liner is engineered for indefinite service life. Product durability depends on installation method, supporting structure quality, and usage conditions. Note that the 37.5mm insulated plasterboard is unsuitable as a dampness isolator or in persistently damp or humid environments. Careful attention to application methods and environmental conditions is critical for optimal performance and longevity.
