80mm Unilin Thin-R XT/CWP Partial Fill Cavity Wall Board

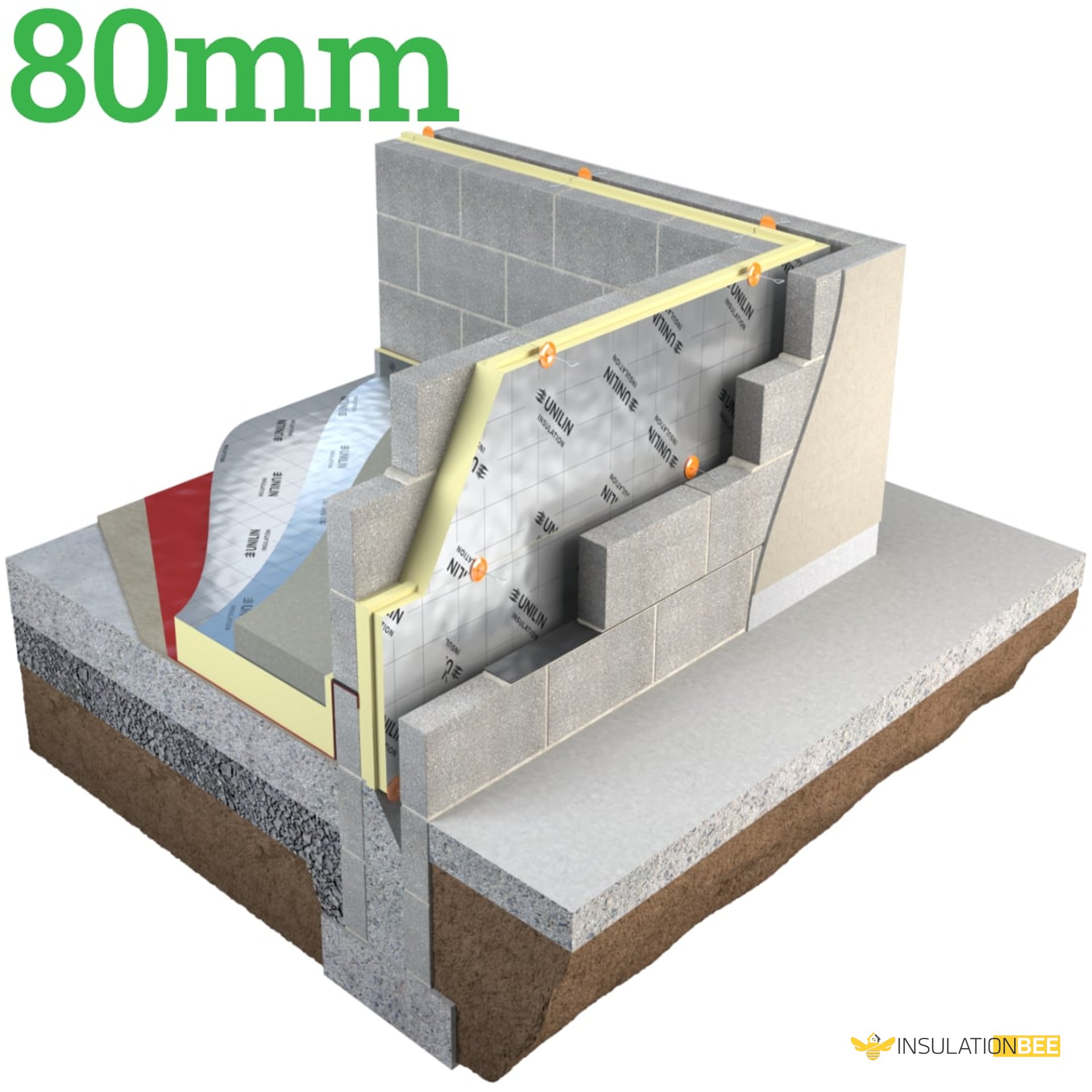

80mm Unilin Thin-R XT/CWP Cavity Wall Plus (T&G) represents a sophisticated building solution engineered to deliver exceptional thermal performance whilst preserving a residual cavity in conventional Partial Fill masonry construction. This advanced 80mm cavity wall insulation board features precision-engineered tongue and grooved joints alongside pre-formed corner elements, guaranteeing continuous insulation performance and substantially reducing thermal bridging effects.

Delivering outstanding thermal characteristics, 80mm Unilin XT/CW Plus Cavity Wall (T&G) provides an exemplary solution for achieving superior thermal efficiency across construction applications. The system affords robust protection from wind-driven moisture penetration, safeguarding structural integrity and durability. Featuring an impressive Lambda value of 0.021 W/mK, this product substantially enhances U-Values and satisfies Future Homes standards requirements. Consequently, 80mm Cavity Wall Plus (T&G) represents an excellent selection for passive house and low-energy building projects, facilitating sustainable, energy-efficient construction methodologies.

Product Details

Brand: Unilin

Model: 80mm Cavity Wall Plus (T&G)

Weight: 7.50kg

Length: 1200mm

Width: 450mm

Dimensions: 1,200mm x 450mm x 80mm

Board Coverage: 0.54m2

Pack Coverage: 2.70m2

Pack Quantity: Pack of 5

R-Value: 2.35 m2K/W

Thermal Conductivity: 0.022 W/mk

MPN: 80mm XT/CW S.E Cavity

Density: 30Kg/m3

Material: Premium PIR insulation

Inner facing: Foil facing

Outer facing: Foil facing

Profile: T&G (tongue and groove)

Vapour Resistivity: 100 MNs/gm

Shipping method: Articulated Vehicle ǀ Courier

Applications: Cavity Wall Insulation

Cavity Width: Recommended residual cavity width allowed is 80mm

BBA Certified: Yes (No. 08/4613)

Features: Lightweight ǀ Easy to handle and install

About

The 80mm Unilin Thin-R XT/CWP Cavity Wall Plus (T&G) Insulation delivers dependable, high-performance polyisocyanurate (PIR) rigid insulation featuring precision tongue and groove jointing and low emissivity foil facings. Specifically formulated for traditional masonry partial fill cavity walls, this insulation system excels at satisfying rigorous thermal requirements whilst maintaining a residual cavity, delivering outstanding protection against wind-driven moisture ingress.

The remarkably low Lambda value of 0.021 W/mK produces superior U-Values, meeting Zero Carbon compliance standards and making it an optimal choice for passive house and low-energy construction schemes. This engineered system incorporates tongue and groove joints and pre-formed corner components, delivering flawless insulation performance and minimizing thermal bridging, resulting in a highly efficient, thermally optimized building envelope.

Key Points

1. Improved Lambda Value of 0.021 W/mK
2. Robust Tongue & Groove Jointing insulation board
3. Corner Panels & Cavity Closers: Reduced Thermal Bridging
4. Clear Cavity Maintained
5. No Exposure Restrictions

Benefits of 80mm Partial Fill Insulation

1. Improved thermal efficiency
2. Reduced thermal bridging
3. Moisture management
4. Condensation control
5. Space optimization
6. Cost-effectiveness
7. Easy installation
8. Environmental impact (lower energy consumption)
9. Fire resistance
10. Long-term performance
