British Gypsum Gypframe 50 FEC Floor & Ceiling Channel

The Gypframe 50 FEC is a 50mm folded edge channel engineered for superior floor and ceiling applications. Built with UltraSTEEL® technology, this profile delivers enhanced stability, reduced handling strain, and dependable screw retention throughout installation.

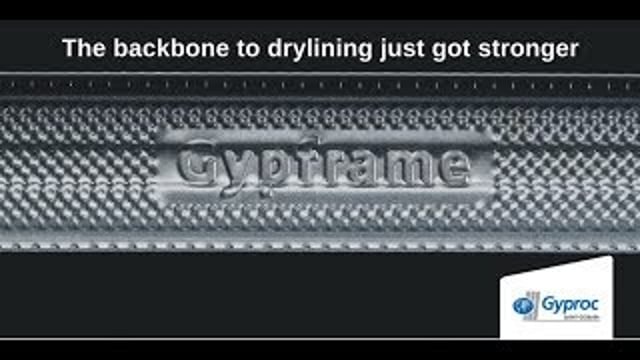

The embossed edge design strengthens overall rigidity and creates a secure connection with studs. Each channel carries the Gypframe branding for straightforward identification and qualifies for the SpecSure warranty, which backs system performance across the building's lifespan.

The folded edge construction improves safety during installation, particularly when working at greater partition heights, by minimising sharp edges and associated injury risk.

Lower carbon variants are now obtainable, identified by the Carbon Low marking for projects prioritising environmental considerations.

• This product is sold in packs of 10; however, single-length purchases may be available upon request. Please contact us to confirm availability.

Key Benefits

• Model and Size: Gypframe 50 FEC 50 - 3.6 m
• Brand: British Gypsum: (Tech. support: 01159456123)
• Thickness: 0.5mm
• Width: 50mm
• Length: 3600mm
• Pack Quantity: 10
• Linear meter weight: 0.44kg
• Pack Weight: 15.84kg
• Type: British Gypsum Metal Channels
• Reaction to fire: A1
• Yield strength (N/mm2): 210
• Delivery Time: 2 - 5 days
• Colour: Steel
• Composition: Gypframe channels are cold-roll formed from DX51D +Z140 MA-C galvanised steel using the patented UltraSTEEL® process.

Standards

EN 14195:2005,Metal framing components for gypsum plasterboard systems - Definitions, requirements and test methods

Where to use

These channels are fixed to the floor and soffit to retain Gypframe studs in British Gypsum partition and lining systems up to 4200mm high, as defined by the system design.

Benefits of British Gypsum Metal Channels

British Gypsum metal channels form a robust, dependable framework for partition walls, ceilings, and drywall installations. Engineered with UltraSTEEL® technology, they provide superior durability, easier handling, and reliable screw retention. The folded edge design improves installation safety, reducing the likelihood of cuts and injuries. Precision-engineered for exact fit and consistent performance, these u channels support the SpecSure® warranty for assured longevity. Low-carbon options are also available, supporting reduced environmental footprint on your project.
