115mm Recticel Eurowall Plus Cavity Board

115mm Recticel Eurowall Plus Full Fill is a premium-grade insulation board engineered with interlocking tongue and groove joints across all four edges. This sophisticated joint system creates a secure connection between boards, substantially reducing thermal bridging and heat loss. The advanced joint design also provides superior protection against wind-driven rain penetration and enhanced windtightness. With a 10mm cavity allowance, 115mm Eurowall Plus enables conventional bricklaying methods without compromise.

Product specification

• Brand: Recticel®
• Model: 115mm recticel Cavity Insulation
• Thickness: 115mm
• Length: 1190mm
• Width: 450mm
• Size(s): 1200x460 (max including tongue and groove joint) 1190x450 (installed dimensions) mm
• Board Coverage: 0.54m2
• Pack Coverage: 4.32m2
• Material: Polyisocyanurate (PIR)
• R-Value: 5.20 m2K/W
• Thermal Conductivity: 0.022 W/mk
• Density: 30Kg/m3 (Foam Core)
• Vapour Resistivity: 100 MNs/gm
• Finish: Multilayer foil on both sides
• Shipping method: Articulated Vehicle
• Fire performance: Euroclass F
• Edge finishing: Tongue and groove
• Applications: Cavity Walls
• Service Temperature: -20 to +100 (°C)
• ETA Notification: Yes
• Features: 115mm to work within 125mm cavities
• Manufacturer: Recticel Eurowall PLUS®

Key benefits

• Excellent thermal performance: λ = 0.022 W/mK
• Rapid and straightforward installation
• Achieves 0.18 U-value in 100mm cavities
• Tongue and groove rebate significantly reduces thermal bridging

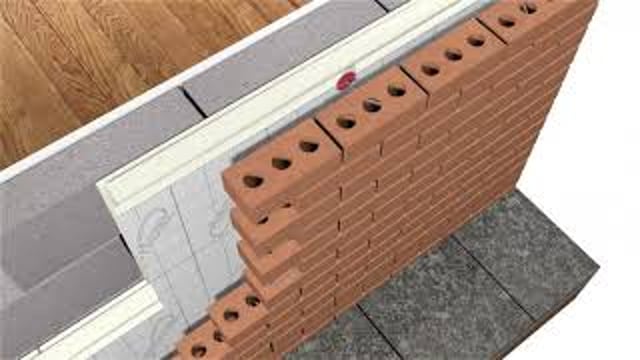

How to Insulate Cavity Walls with Eurowall®+

Installing 115mm Eurowall full fill insulation within a 125mm cavity delivers a U-value of 0.18 W/m²K, meeting Part L1A England 2013 and Part L1A Wales 2014 requirements. This approach preserves architectural designs whilst avoiding increased building footprints or reduced internal spaces.

Recticel Eurowall 115mm is also supplied in 75mm for 85mm cavities, 90mm for 100mm cavity and 140mm for 150mm cavities. Its streamlined profile provides adequate space for traditional bricklaying practices. This enables bricklayers to confidently 'roll' the outer leaf bricks into position, maintaining workflow efficiency.

Features and Benefits

Superior Thermal Performance: Delivering thermal conductivity of 0.022 W/mK, 115mm Recticel Eurowall Plus Full Fill provides outstanding insulation capabilities, dramatically minimising heat loss and boosting energy efficiency.

Tongue & Groove Profile: This cutting-edge joint system guarantees a secure connection, eliminating thermal gaps and maximising thermal performance.

Moisture Resistance: These 115mm insulation boards are engineered to prevent moisture penetration, guaranteeing extended durability and consistent performance.

Easy Installation: The Tongue & Groove profile streamlines the installation process, reducing both labour time and installation costs.

Regulatory Compliance: At 450mm board width, this product satisfies UK building regulations, maintaining correct spacing for wall tie placement.

Enhanced Soundproofing: The robust density of these boards effectively suppresses noise transmission, delivering a quieter and more pleasant indoor environment.

Fire Resistance: Recticel 115mm Eurowall Plus Full Fill achieves Euroclass E fire rating, delivering enhanced safety protection in fire scenarios.

Long Lifespan: Manufactured from premium materials, these cavity insulation boards deliver exceptional durability and reliable performance, reducing replacement frequency.

Environmentally Friendly: Manufactured from recycled content and fully recyclable, 115mm Recticel Full Fill represents a responsible insulation solution.

Applications

Wall Insulation: Primarily designed for cavity wall applications, Recticel 115mm Eurowall Plus Full Fill provides outstanding thermal performance.

Roof Insulation: Perfect for minimising roof heat loss, this product strengthens building energy performance.

Floor Insulation: Excellent for floor applications, it maintains pleasant underfoot temperatures.

Loft Insulation: Suited to loft environments, it prevents heat escape and delivers energy savings.

Industrial Insulation: Applicable to large industrial facilities, storage buildings, and manufacturing plants requiring effective thermal control.

Soundproofing: Addresses acoustic requirements, suppressing noise across walls, floors, and ceiling areas.

Installation

Recticel Full Fill is positioned within the cavity between outer and inner walls. The Tongue & Groove profile creates a tight seal, limiting thermal loss. A 10mm residual gap accommodates mortar application during installation.

Certifications

Produced by Recticel Insulation, a respected UK insulation manufacturer, 115mm Eurowall Plus conforms to all relevant industry standards and has undergone rigorous independent assessment for thermal performance and durability.

Equivalent/Related Products

Kingspan Kooltherm K108 Cavity Board Celotex CW4000 Cavity Wall Insulation EcoTherm Eco-Cavity Full Fill
