35mm Jablite EPS70 Jabfloor Floor Insulation Board

The 35mm Expanded Polystyrene EPS70 Jablite Jabfloor Insulation Board delivers outstanding thermal performance with exceptional durability and ease of installation. This premium EPS insulation board excels at insulating floors, walls, and roofs across residential and commercial applications.

Engineered for consistent thermal efficiency across varying temperatures, the 35mm EPS70 grade provides reliable long-term insulation performance throughout a building's lifespan. Its moisture-resistant, rot-proof, and non-toxic composition makes it ideal for diverse construction projects, with board dimensions of 2400mm x 1200mm x 35mm offering excellent flexibility for installation.

35mm Jablite EPS Polystyrene boards are supplied in multiple grades from EPS70 through to EPS500, incorporating flame-retardant additives for enhanced safety. Jablite EPS70 and EPS100 deliver exceptional thermal insulation capabilities, with thermal conductivity ratings of 0.038 and 0.036 W/mK respectively.

This lightweight cellular plastic material integrates seamlessly with standard building products, ensuring versatility across numerous insulation applications. 35mm Jablite Jabfloor insulation board is completely CFC and HCFC-free, making it an environmentally responsible choice that is fully recyclable.

Product specification

Brand: Jablite / BEWI ®

Model: 35mm EPS 70

Thickness: 35mm

Length: 2400mm

Width: 1200mm

Board coverage: 2.88m2

Pack Quantity: 17

Pack coverage: 48.96m2

Dimensions: 2,400mm x 1,200mm x 35mm

R-Value: 0.68m2K/W

Thermal Conductivity: 0.038W/mK

Compressive Strength: 70kPa

Density: 15kg/m3

Colour: White with grey dots

Material: Expanded Polystyrene - EPS insulation

Edging: Square Edge

Applications: Flooring ǀ Walls ǀ Construction

Features: Versatile EPS ǀ Polystyrene Board

Manufacturer: 20mm BEWI Jabfloor EPS®

Made To Order Sizes

• Thicknesses: Standard thicknesses available include 25, 30, 40, 50, 60, 75, 100, 120, 150 and 200mm. Custom thicknesses from 25mm to 600mm can be ordered upon request.
• Grades: Available grades are 70, 100, 150, 200, 250 & 300mm.
• Made to order enquiry: Contact our sales team at sales@insulationbee.co.uk for custom size quotations.

Application

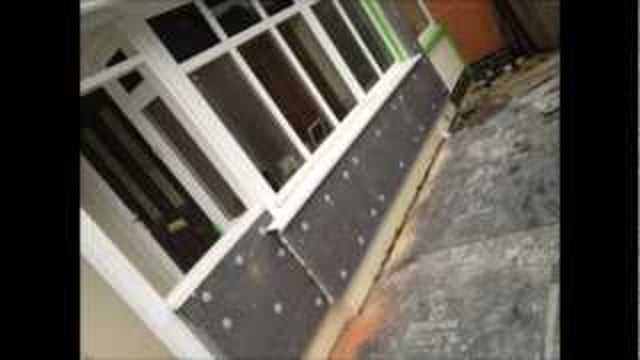

Perfect for installation above concrete slabs or precast concrete floors in residential ground-floor constructions, the 35mm EPS insulation can be topped with chipboard wearing layers to satisfy Building Regulations U-value standards. For optimal performance and longevity, store the material in a covered location, shielded from direct sunlight and ground moisture exposure.

• Jabfloor 70: Domestic
• Jabfloor 100: Offices, Special Occupancy Residential (e.g. Care Home)
• Jabfloor 150: Public, Government and Educational Buildings
• Jabfloor 200: Industrial and Commercial
• Jabfloor 250: Industrial, Cold Store, Heavy Commercial

35mm Jabfloor is a floor insulation board engineered to achieve required U-values and compressive performance across multiple floor applications:

1. Below ground supported slab
2. Above slab below chipboard
3. Above slab below screed
4. Precast suspended concrete
5. Cold Store

Compression Performance

• Jabfloor Grade: 70 / 100 / 150 / 200 / 250
• Nominal Density (Kg/m3): 15 / 20 / 25 / 31 / 34
• Compressive Strength 1% (kN/m2): 20 / 45 / 70 / 90 / 100
• Compressive Strength 10% (kN/m2): 70 / 100 / 150 / 200 / 250
• Shear Strength (kN/m2): 55 / 75 / 100 / 200 / 250
• Shear Modulus (kN/m2): 2100 / 2800 / 3400 / 4100 / 4800

Thermal Conductivity (Lambda) (W/mK)

1. Jabfloor 70: 0.038
2. Jabfloor 100: 0.036
3. Jabfloor 150: 0.035
4. Jabfloor 200: 0.034
5. Jabfloor 250: 0.034

Handling

35mm EPS 70 Jablite boards are engineered for straightforward handling and cutting without requiring specialist equipment. This delivers a cost-efficient and practical insulation solution suitable for diverse construction projects.
